DIN PN 40 Cast Steel Angle Valve
DIN PN 40 Cast Steel Angle Valve
SKU:VAL-1477dc
Get reliable performance with the DIN PN 40 Cast Steel Angle Valve. Durable construction, precise dimensions, and manual operation make it ideal for industrial applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Angle Valve
$699.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Angle Valve
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Angle Valve is a high-quality valve designed for industrial applications. Constructed with a cast steel body, stainless steel seat, disc, and stem, this valve ensures durability and reliable performance. It features precise dimensions compliant with ISO5752 and DIN2501-PN40 standards, making it suitable for diverse hydraulic systems. The handwheel actuator allows for manual operation, perfect for settings requiring hands-on control. With an IMPA/ISSA Code of 753495 and flanged connection, this valve meets the rigorous demands of institutional procurement.

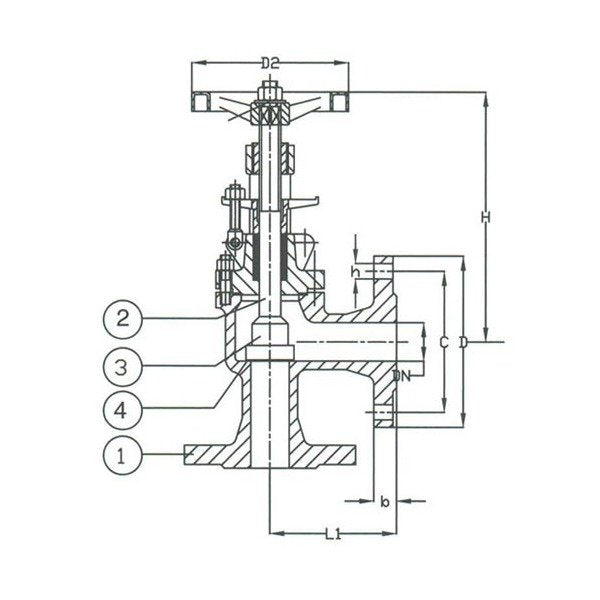

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
450 mm
Specifications Connection
Flanged Drilled
Specifications D
515 mm
Specifications D2
575 mm
Specifications Disc Material
Stainless Steel
Specifications H
630 mm
Specifications Hydraulic Inspection Body
37.5
Specifications Hydraulic Inspection Seat
25
Specifications Impaissa Code
753495
Specifications L1
375 mm
Specifications Number Of Holes
16
Specifications Seat Material
Stainless Steel
Specifications Size
300
Specifications Stem Material
Stainless Steel
Specifications T
42 mm
Specifications Weight
328 kg
