DIN PN 40 Cast Steel Globe Lift Check Valve
DIN PN 40 Cast Steel Globe Lift Check Valve
SKU:VAL-3694d3
DIN PN 40 Cast Steel Globe Valve, ensures durability & performance. Compliant with DIN standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Globe Lift Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Globe Lift Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Lift Check Globe Pattern Valve is designed for industrial applications requiring reliable performance. Constructed with Cast Steel body, Stainless Steel disc, and seat materials, it ensures durability and corrosion resistance. Compliant with DIN standards, it offers precise hydraulic inspection capabilities, easy installation with flanged connections, and efficient operation through the Handwheel actuator.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel

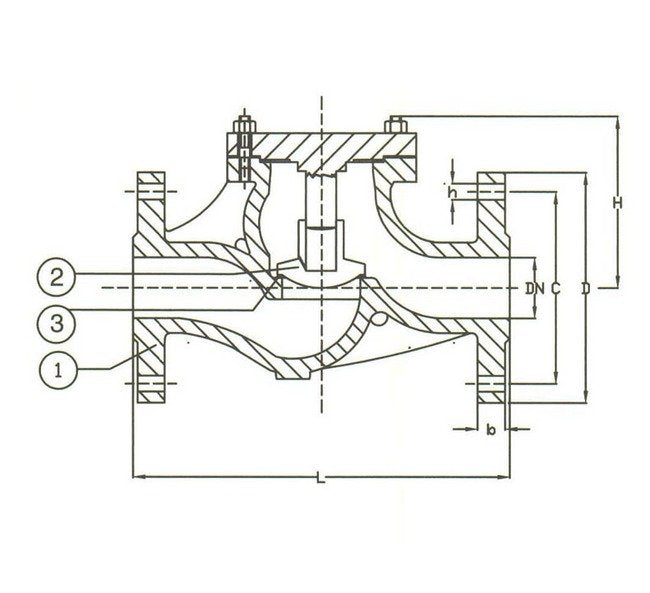

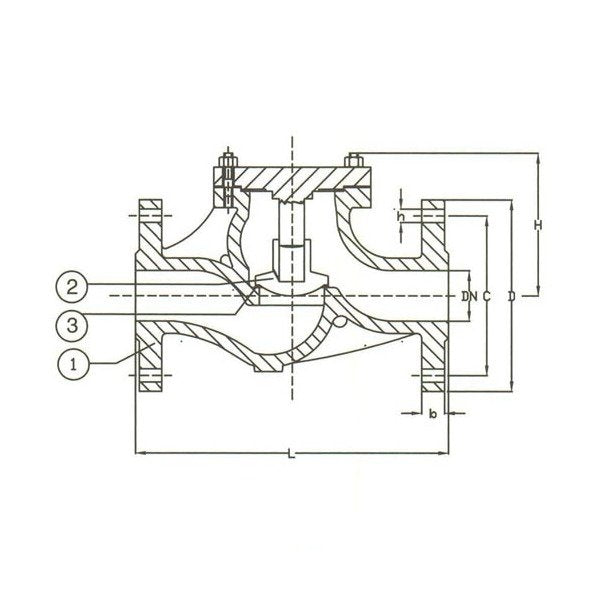

Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications Disc Material
Stainless Steel
Specifications H
80 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L
180 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
032
Specifications Stem Material
Stainless Steel
Specifications T
18 in
Specifications Weight
7.0 kg
