DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 032
DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 032
SKU:VAL-1a960f
Premium DIN PN 40 Cast Steel Valve - Designed for industrial reliability and durability.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 032
$189.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 032
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

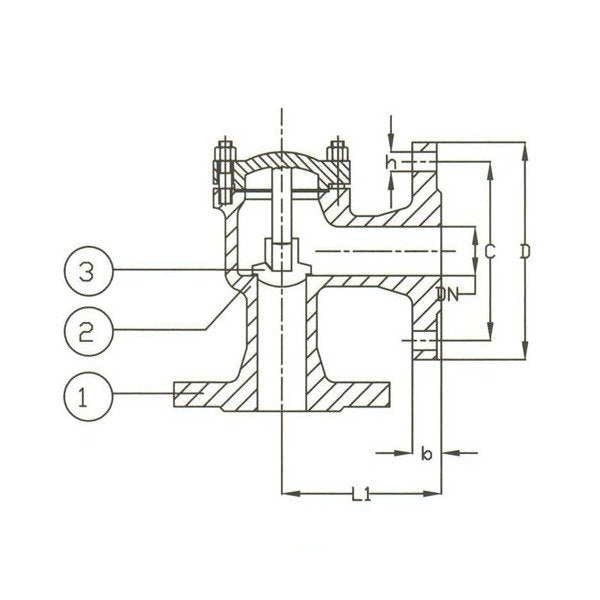

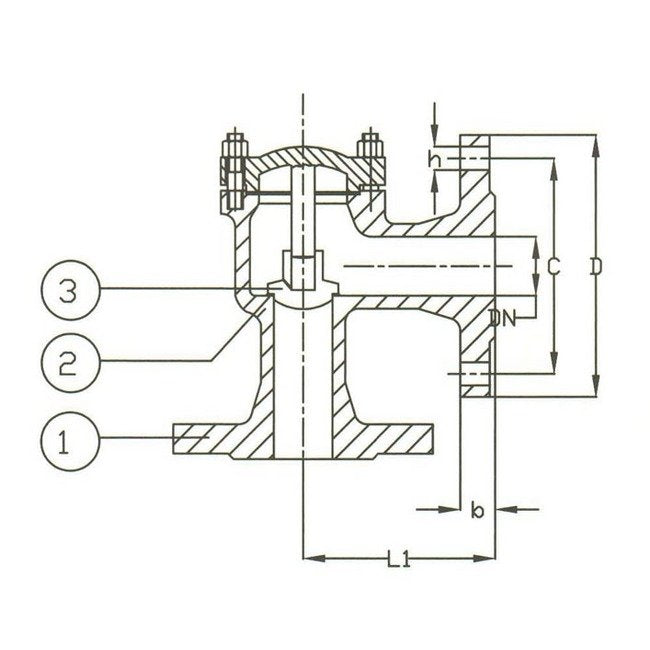

The DIN PN 40 Cast Steel Lift Check Angle Pattern Valve is crafted with precision and durability in mind. Featuring a Cast Steel body with Stainless Steel components, including the Disc, Seat, and Stem, this valve ensures reliable performance under high pressures. Compliant with DIN standards, it offers a face to face measurement according to DIN 3202-F1 and flanges according to DIN2501-PN40, making it ideal for industrial applications where quality and functionality are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications Disc Material
Stainless Steel
Specifications H
18 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
105.0 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
032
Specifications Stem Material
Stainless Steel
Specifications T
18 in
Specifications Weight
7.0 kg
