DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 125
DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 125
SKU:VAL-e0c7e9
Premium DIN PN 40 Cast Steel Valve - Durable, Reliable Performance
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 125
$399.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Lift Check Angle Pattern Valve - Size 125
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Lift Check Angle Pattern Valve is a robust solution for fluid control applications in industrial settings. Constructed with a Cast Steel body and Stainless Steel components, including the disc and seat, this valve ensures durability and reliable performance. Meeting stringent DIN standards for Face to Face and Center dimensions, along with DIN2501-PN40 flanges, it guarantees precise fit and compatibility. The handwheel Actuator provides ease of operation, making it ideal for both consumer and institutional buyers seeking quality and compliance.

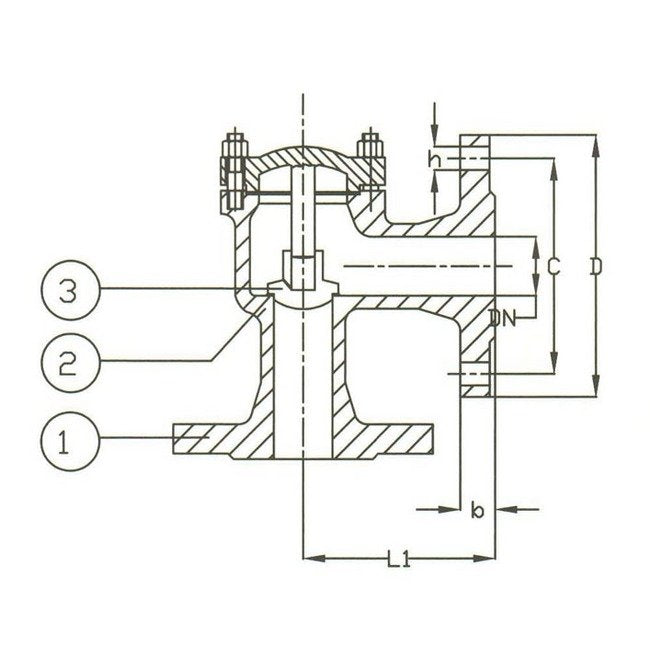

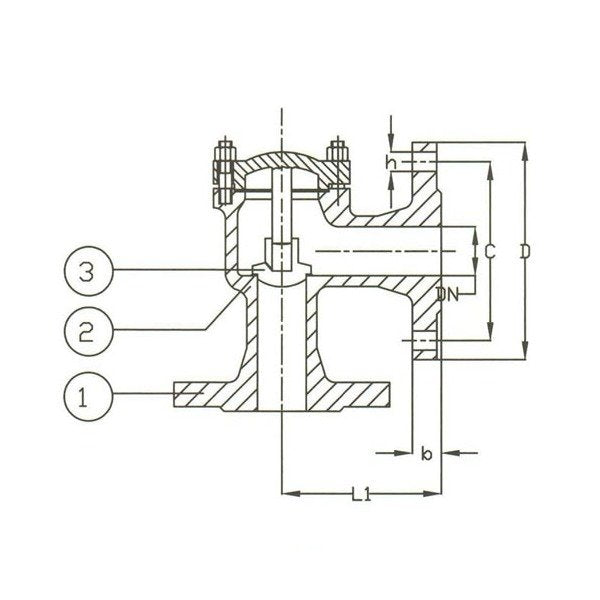

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
220 mm
Specifications Connection
Flanged Drilled
Specifications D
270 mm
Specifications Disc Material
Stainless Steel
Specifications H
25 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
200 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications T
26 in
Specifications Weight
70.0 kg
