DIN PN 40 Cast Steel Lift Check Angle Valve
DIN PN 40 Cast Steel Lift Check Angle Valve
SKU:VAL-554941
Reliable DIN PN 40 Cast Steel Valve for industrial use, featuring durable construction and easy operation.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Lift Check Angle Valve
$149.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Lift Check Angle Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Lift Check Angle Valve is expertly crafted with a cast steel body and stainless steel components for durability and corrosion resistance. With precision engineering to meet DIN standards, this valve ensures reliable performance and longevity. The handwheel actuator allows for easy operation, making it ideal for a wide range of industrial applications.
Ready to Grow Without Cash Flow Constraints?

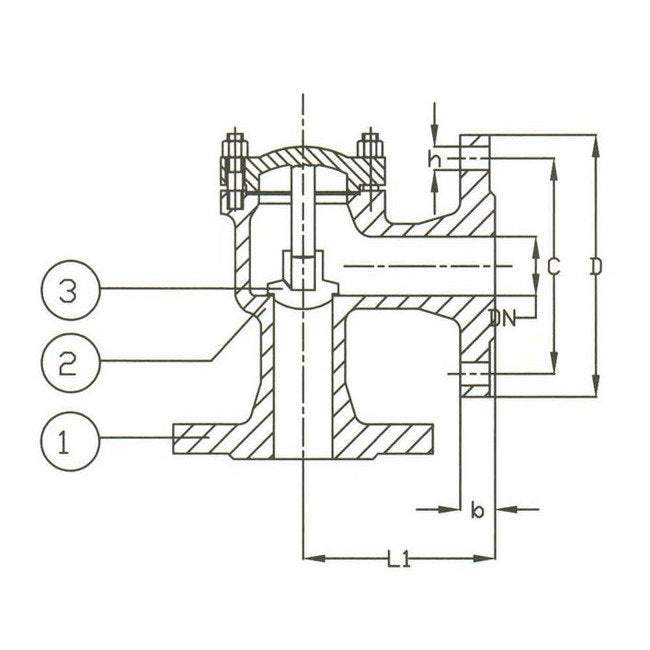

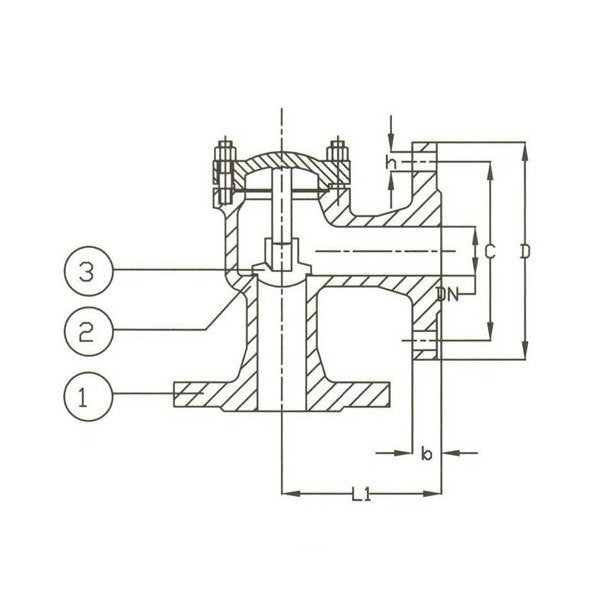

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications Disc Material
Stainless Steel
Specifications H
14 mm
Specifications Hydraulic Inspection Body
60
Specifications Hydraulic Inspection Seat
40
Specifications L1
90 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
015
Specifications Stem Material
Stainless Steel
Specifications T
16 in
Specifications Weight
3.00 kg
