DIN PN 40 Cast Steel Quick Closing Angle Valve
DIN PN 40 Cast Steel Quick Closing Angle Valve
SKU:VAL-fe0e3f
Reliable DIN PN 40 Cast Steel Angle Valve for high-pressure applications, compliant with DIN2501-PN40 standards.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Quick Closing Angle Valve
$159.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Quick Closing Angle Valve
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Quick Closing Angle Valve is engineered for optimal performance in high-pressure environments, featuring a durable cast steel body with stainless steel disc, seat, and stem. With a Spring Loaded Shut-off Pressure of 2.0 bar and a Working Pressure of 40 bar, this valve ensures reliable operation under demanding conditions. Compliant with DIN2501-PN40 standards, it guarantees precision and efficiency in fluid control applications, making it a perfect choice for industrial and institutional settings.

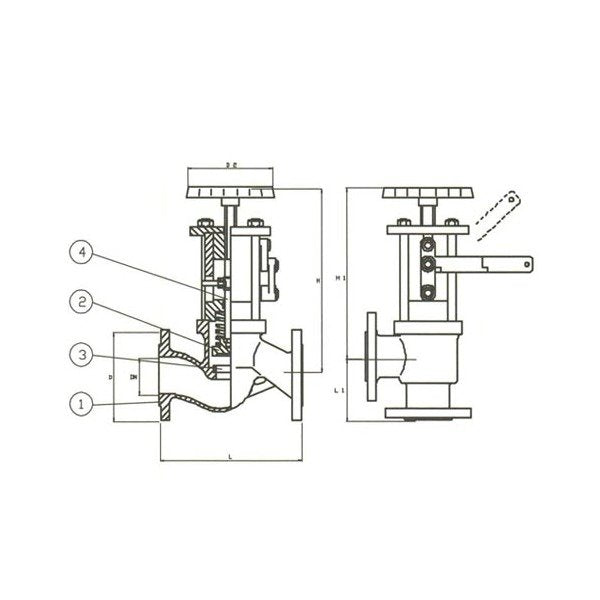

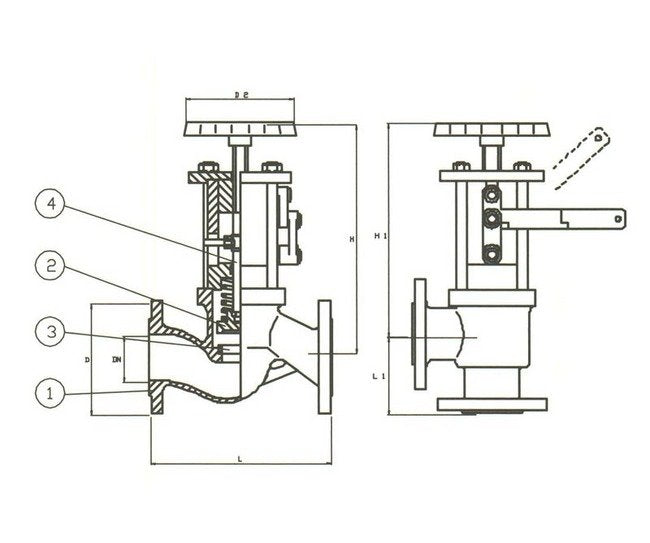

Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
115 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H1
325 mm
Specifications L1
100 mm
Specifications Seat Material
Stainless Steel
Specifications Size
025
Specifications Spring Loaded Shut Off Pressure
2.0 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
8.0 kg
Specifications Working Pressure
40 bar
