DIN PN 40 Cast Steel Quick Closing Angle Valve
DIN PN 40 Cast Steel Quick Closing Angle Valve
SKU:VAL-0d7415
Enhance fluid control with our DIN PN 40 Cast Steel Quick Closing Angle Valve - durable, high-pressure performance for industrial applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Quick Closing Angle Valve
$149.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Quick Closing Angle Valve
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

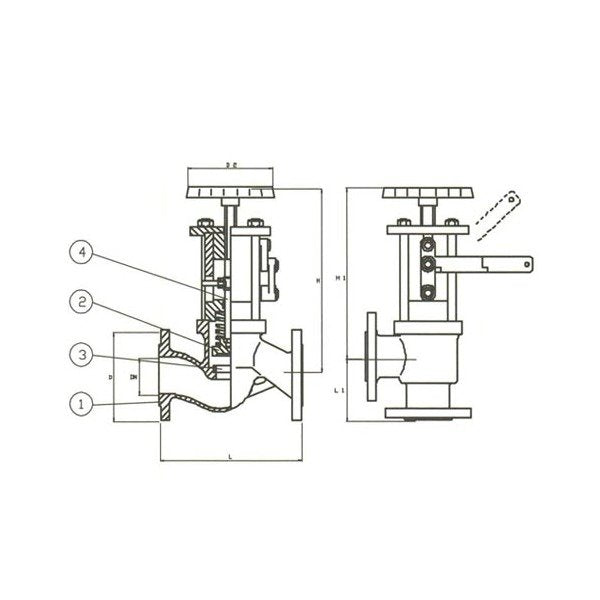

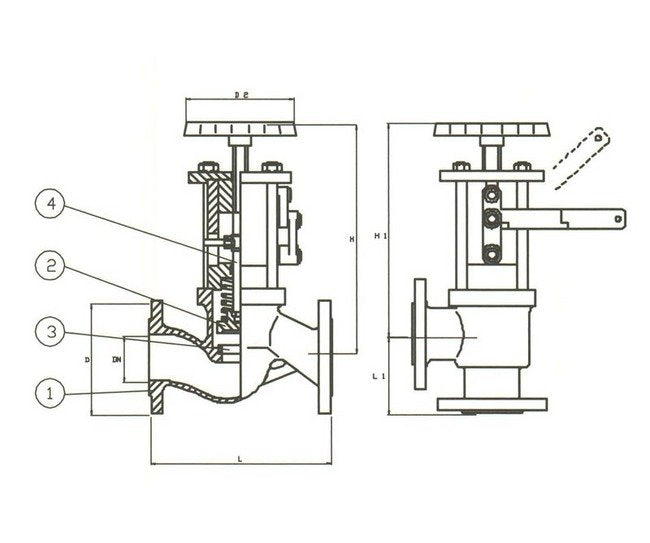

The DIN PN 40 Cast Steel Quick Closing Angle Valve is a reliable solution for industrial fluid control. Constructed with a sturdy cast steel body, stainless steel disc, seat, and stem, this valve ensures durability and optimal performance under high pressure environments. The valve features a spring-loaded shut-off pressure of 2.0 bar, working pressure of 40 bar, and precise dimensions according to DIN2501 standards. Equipped with flanges for easy installation, this valve is designed for efficiency and longevity, making it ideal for a wide range of applications in industrial settings.
Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H1
380 mm
Specifications L1
125 mm
Specifications Seat Material
Stainless Steel
Specifications Size
050
Specifications Spring Loaded Shut Off Pressure
2.0 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
18.0 kg
Specifications Working Pressure
40 bar
