DIN PN 40 Cast Steel Quick Closing Angle Valve 100mm
DIN PN 40 Cast Steel Quick Closing Angle Valve 100mm
SKU:VAL-fb91fe
DIN PN 40 Cast Steel Valve - Durable, high-pressure solution with Stainless Steel components. Lever-operated for precise control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
DIN PN 40 Cast Steel Quick Closing Angle Valve 100mm
$599.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Cast Steel Quick Closing Angle Valve 100mm
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN 40 Cast Steel Quick Closing Angle Valve is a robust and reliable solution for high-pressure applications. Constructed with Cast Steel body, Stainless Steel seat, disc, and stem, this valve ensures durability and corrosion resistance. The lever actuators provide precise control, while the flanged connection allows easy installation according to DIN2501-PN40 standards.

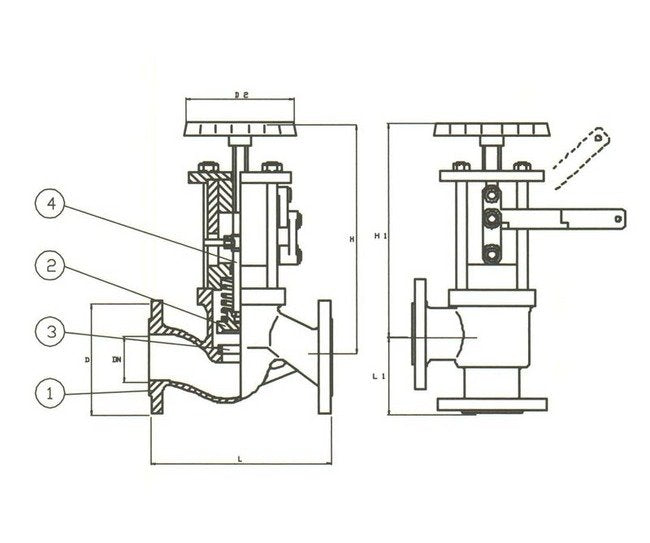

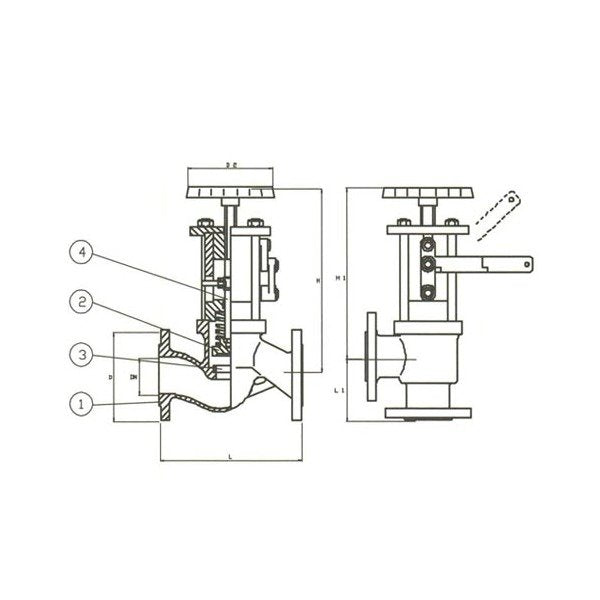

Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications D2
160 mm
Specifications Disc Material
Stainless Steel
Specifications H1
485 mm
Specifications L1
175 mm
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Spring Loaded Shut Off Pressure
1.2 bar
Specifications Stem Material
Stainless Steel
Specifications Weight
50.0 kg
Specifications Working Pressure
40 bar
