DIN PN 40 Cast Steel Quick Closing Globe Valve - 065 Size

Name: DIN PN 40 Cast Steel Quick Closing Globe Valve - 065 Size
Brand: World Wide Metric, Inc.
SKU: VAL-13ea0d
Price: 239.99 USD
Availability: OutOfStock

SKU:VAL-13ea0d

High-performance DIN PN 40 Cast Steel Globe Valve for precision shut-off in industrial settings. Lever actuated with DIN2501-PN40 flanges.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

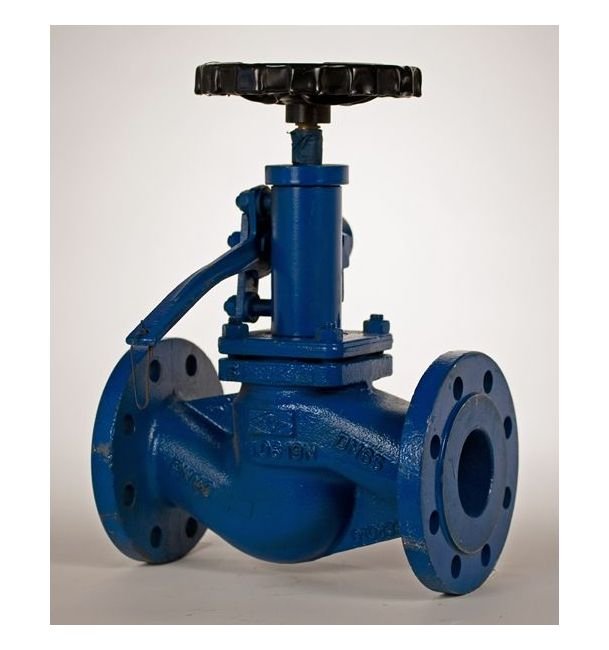

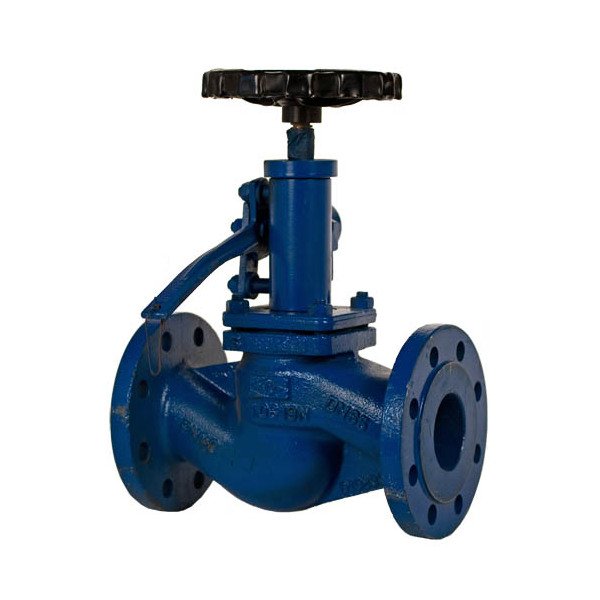

The PN 40 Cast Steel Quick Closing Globe Valve is expertly crafted with a Cast Steel body, Stainless Steel disc, seat, and stem, ensuring durability and reliability. With a working pressure of 40 bar, this valve excels in industrial applications where precision shut-off is critical. Designed for ease of operation, it features a lever actuator and flanged connection drilled to DIN2501-PN40 standards, making it ideal for a wide range of institutional and government procurement needs.

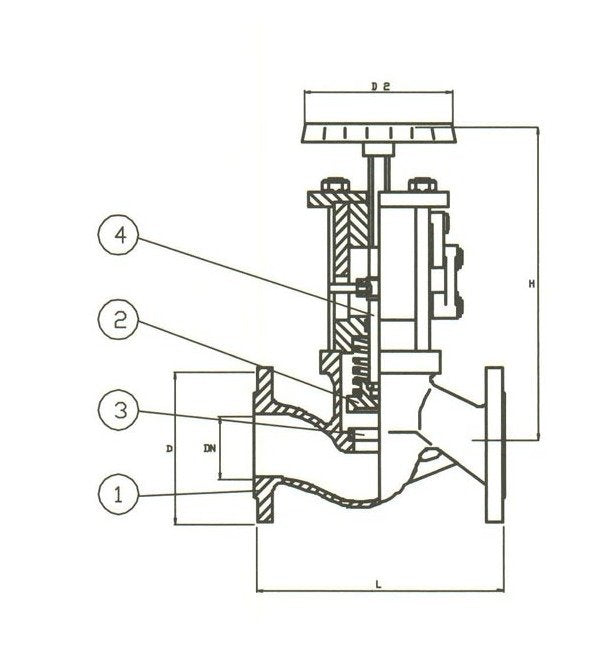

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

140 mm

Specifications Disc Material

Stainless Steel

Specifications H

435 mm

Specifications L

290 mm

Specifications Seat Material

Stainless Steel

Specifications Size

065

Specifications Spring Loaded Shut Off Pressure

2.0 bar

Specifications Stem Material

Stainless Steel

Specifications Weight

31.0 kg

Specifications Working Pressure

40 bar

DIN PN 40 Cast Steel Quick Closing Globe Valve - 065 Size
