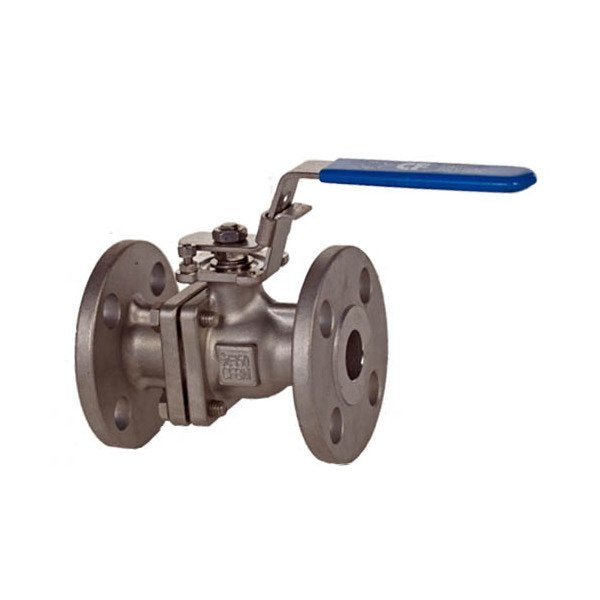

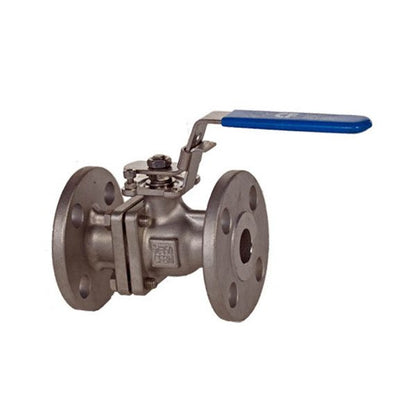

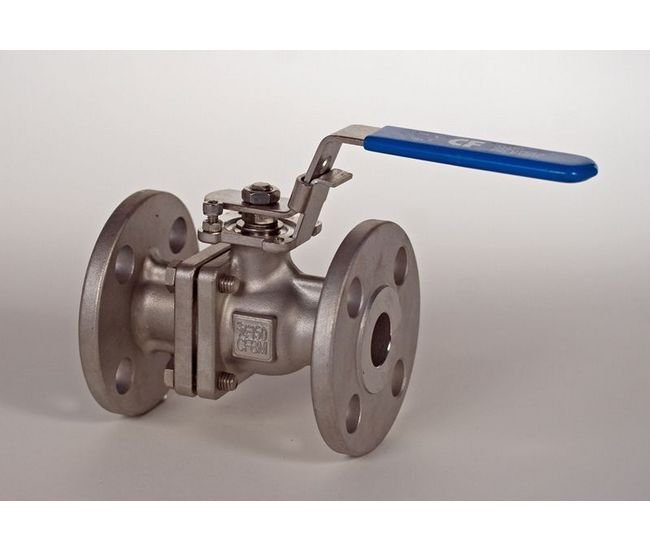

DIN PN 40 Full Bore Ball Cast Steel Valve - 100 Size

Name: DIN PN 40 Full Bore Ball Cast Steel Valve - 100 Size
Brand: World Wide Metric, Inc.
SKU: VAL-8c40e0
Price: 349.99 USD
Availability: OutOfStock

SKU:VAL-8c40e0

Reliable DIN PN 40 Full Bore Ball Cast Steel Valve for industrial hydraulic control.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN 40 Full Bore Ball Cast Steel Valve is a robust solution for industrial applications. It features a cast steel body, SS316 ball, and Teflon seat for durability and reliable performance. With face to face compliance according to DIN 3202-F4/5 and flanges meeting DIN2501-PN40 standards, this valve ensures precise hydraulic control and efficiency. The brass stem, lever actuators, and synthetic material seat further enhance its functionality, making it a dependable choice for institutional needs.

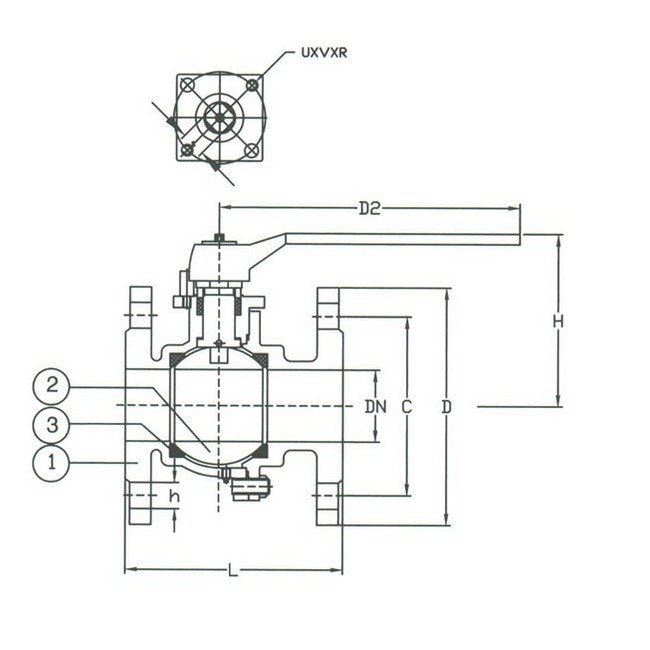

Product Specifications

Specifications Actuators

Lever

Specifications Body Material

Cast Steel

Specifications C

190 mm

Specifications D

235 mm

Specifications D2

395 mm

Specifications H

190 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

190 mm

Specifications Number Of Holes

Specifications Seat Material

Synthetic Material

Specifications Size

100

Specifications Stem Material

Brass

Specifications T

24 mm

Specifications Weight

40 kg

DIN PN 40 Full Bore Ball Cast Steel Valve - 100 Size
