DIN PN 40 Stainless Steel Full Bore Ball Valve
DIN PN 40 Stainless Steel Full Bore Ball Valve
SKU:VAL-c37625
High-performance stainless steel ball valve for industrial use. Compliant with DIN standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DIN PN 40 Stainless Steel Full Bore Ball Valve
$89.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Stainless Steel Full Bore Ball Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

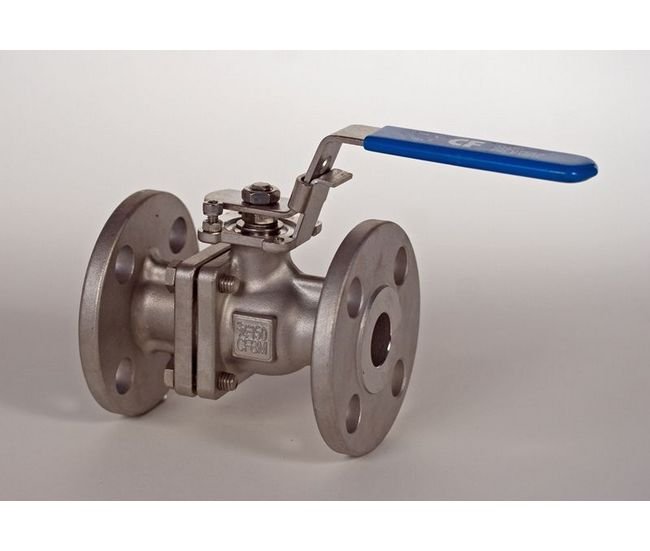

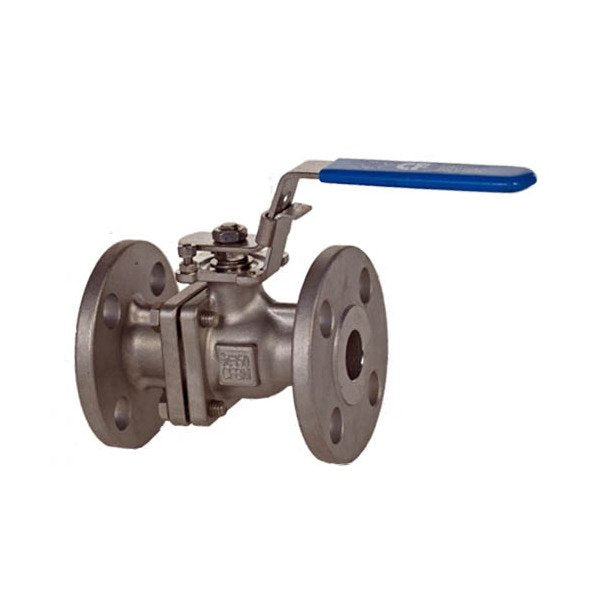

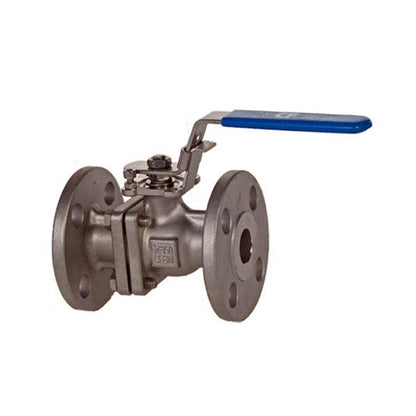

The DIN PN 40 Stainless Steel Full Bore Ball Valve is engineered with a SS316 body, CF8M2 ball, and Teflon seat for superior performance. Compliant with DIN standards, this valve offers precise hydraulic inspections, durable construction, and effortless operation. Ideal for industrial applications requiring reliability and longevity.

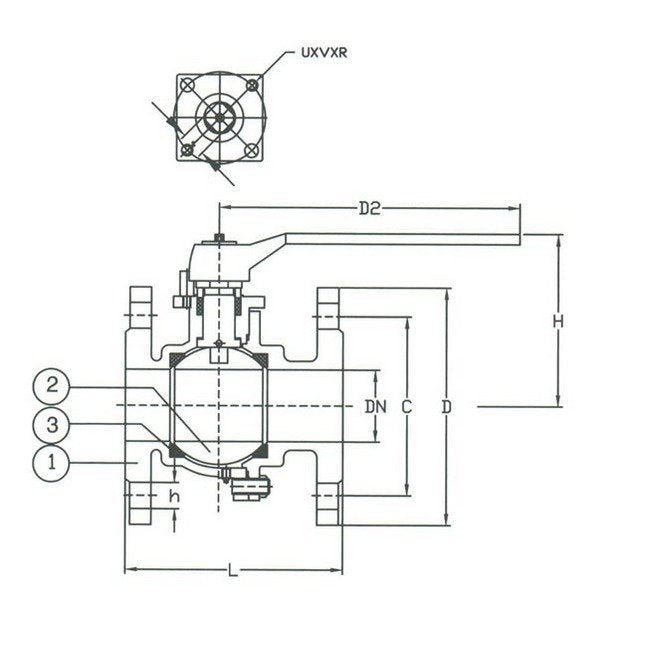

Product Specifications
Specifications Actuators
Lever
Specifications Body Material
Stainless Steel
Specifications C
65 mm
Specifications D
95 mm
Specifications D2
130 mm
Specifications H
60 mm
Specifications Hydraulic Inspection Body
64
Specifications Hydraulic Inspection Seat
40
Specifications L
115 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
015
Specifications Stem Material
Stainless Steel
Specifications T
16 mm
Specifications Weight
2.5 kg
