DIN PN 40 Y-Strainers, Cast Steel Valve
DIN PN 40 Y-Strainers, Cast Steel Valve
SKU:VAL-a00b51
Durable DIN PN 40 Cast Steel Y-Strainer Valve for precise filtration. Compliant with DIN standards. Ideal for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN PN 40 Y-Strainers, Cast Steel Valve
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN 40 Y-Strainers, Cast Steel Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

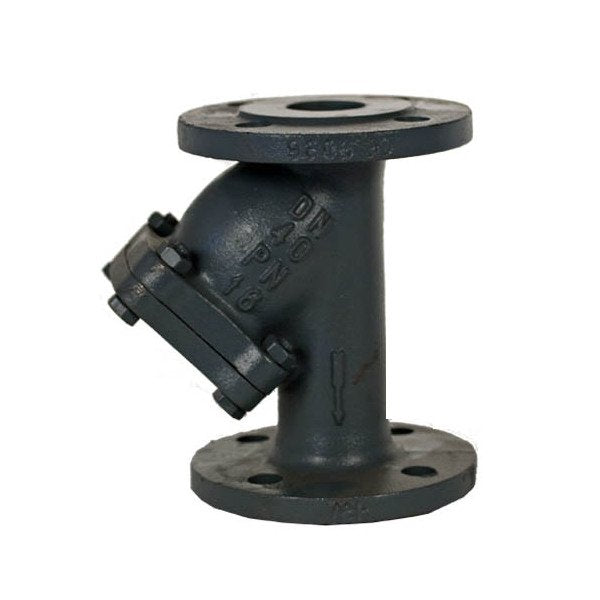

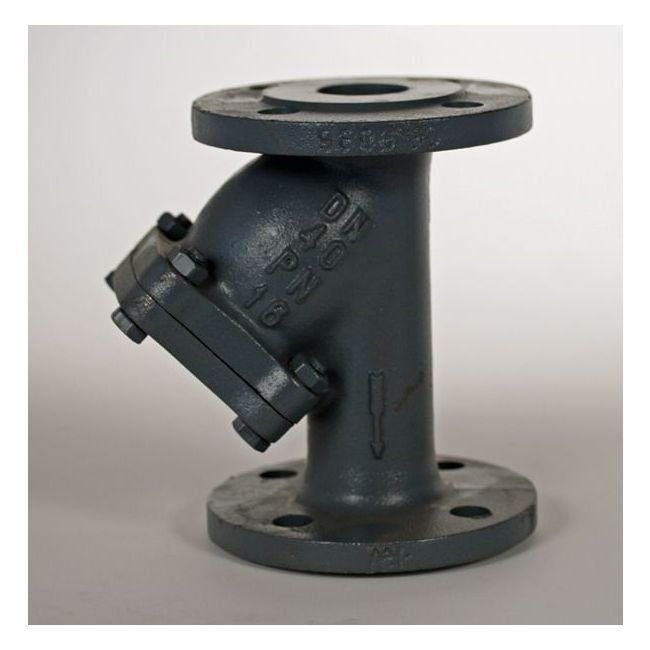

The DIN PN 40 Y-Strainers, Cast Steel Valve is a top-quality solution for industrial filtration needs. Constructed with durable Cast Steel body and Stainless Steel strainer according to AISI 304 standards, this valve ensures robust performance and longevity. Compliant with DIN 3202-F1 and DIN2501-PN16 standards, it guarantees precise face-to-face and flange connections. With a compact design and weighing 4.0 kg, this valve is ideal for applications requiring reliable filtration and smooth operation.
Ready to Grow Without Cash Flow Constraints?

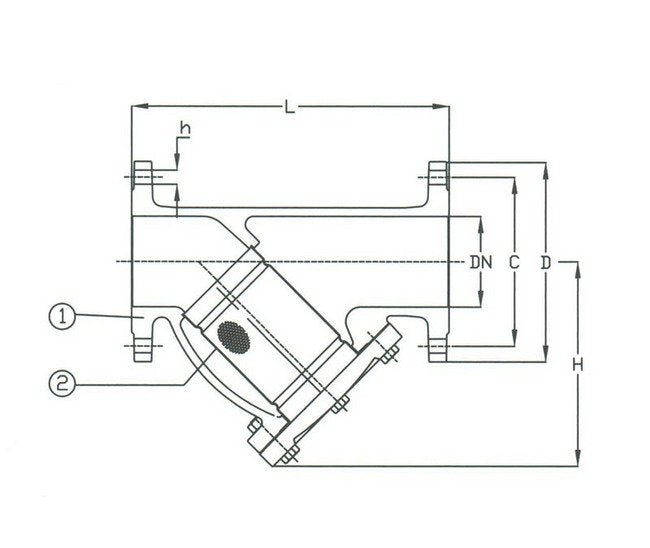

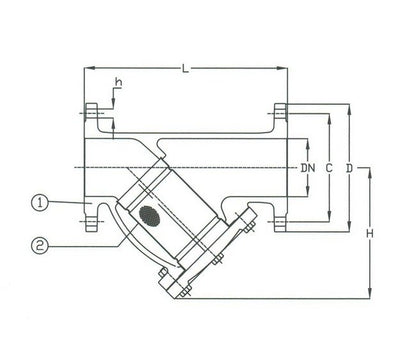

Product Specifications
Specifications Body Material
Cast Steel
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications H
75 mm
Specifications Hydraulic Inspection Body
64
Specifications Hydraulic Inspection Seat
40
Specifications L
130 mm
Specifications Number Of Holes
4
Specifications Size
015
Specifications T
16 mm
Specifications Weight
4.0 kg
