DIN PN10 Cast Iron Check Valve
DIN PN10 Cast Iron Check Valve
SKU:VAL-96a205
Reliable PN 10 Vent Check Cast Iron Valve conforming to DIN2501-PN10 standards, featuring Cast Iron body and Stainless Steel components for durability and precision.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
DIN PN10 Cast Iron Check Valve
$199.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Cast Iron Check Valve
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 10 Vent Check Cast Iron Valve is constructed with a resilient Cast Iron body and durable Stainless Steel components including the disc, seat, stem, and guide bar. Designed with precision according to DIN2501-PN10 standards, this valve ensures reliable performance and longevity. The Handwheel actuator allows for manual operation, while the flanged connection offers easy installation. With a size of 150mm and weighing 39.0 kg, this valve is ideal for industrial applications requiring secure flow control.

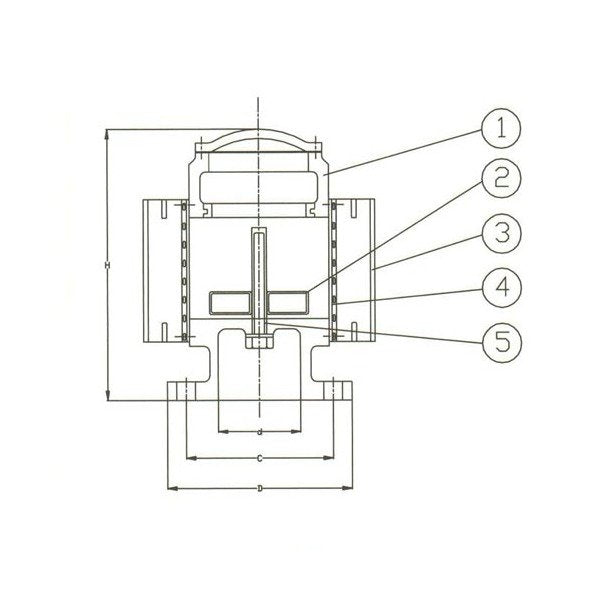

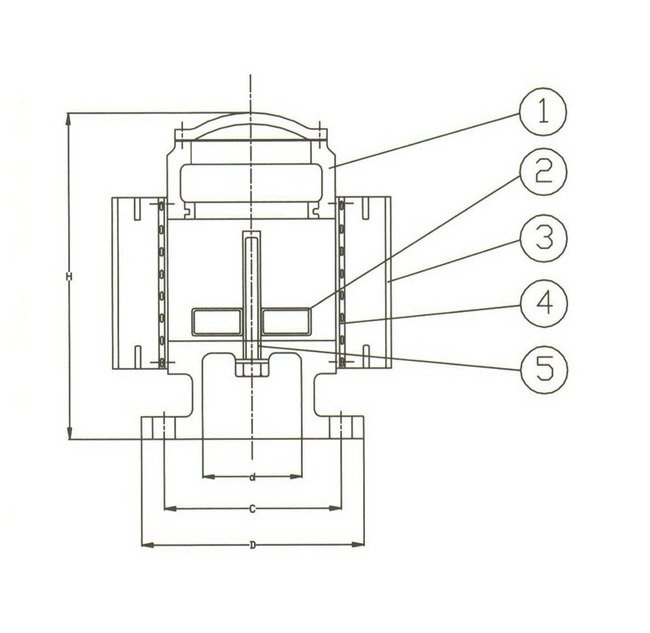

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
240 mm
Specifications Connection
Flanged Drilled
Specifications D
285 mm
Specifications Disc Material
Stainless Steel
Specifications H
311 mm
Specifications Hole Diameter
22 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
150
Specifications Stem Material
Stainless Steel
Specifications Weight
39.0 kg
