DIN PN10 Cast Iron Check Valve - 300mm
DIN PN10 Cast Iron Check Valve - 300mm
SKU:VAL-dac963
Robust PN10 Cast Iron Valve - Ideal for industrial flow control with cast iron body, stainless steel components, handwheel actuator. DIN2501-PN10 compliant.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
DIN PN10 Cast Iron Check Valve - 300mm
$699.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Cast Iron Check Valve - 300mm
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 10 Vent Check Cast Iron Valve is a sturdy and reliable valve designed for industrial applications requiring efficient flow control. Constructed with a cast iron body and stainless steel components including the disc, seat, and stem, this valve ensures durability and resistance to corrosion. Equipped with a handwheel actuator and flanged connection as per DIN2501-PN10 standards, this valve offers easy operation and installation. With a size of 300mm and weighing 146kg, it provides a robust solution for fluid handling systems.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron

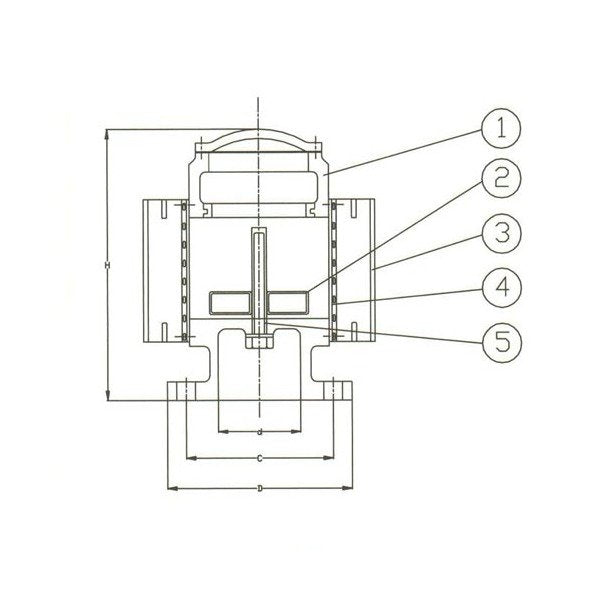

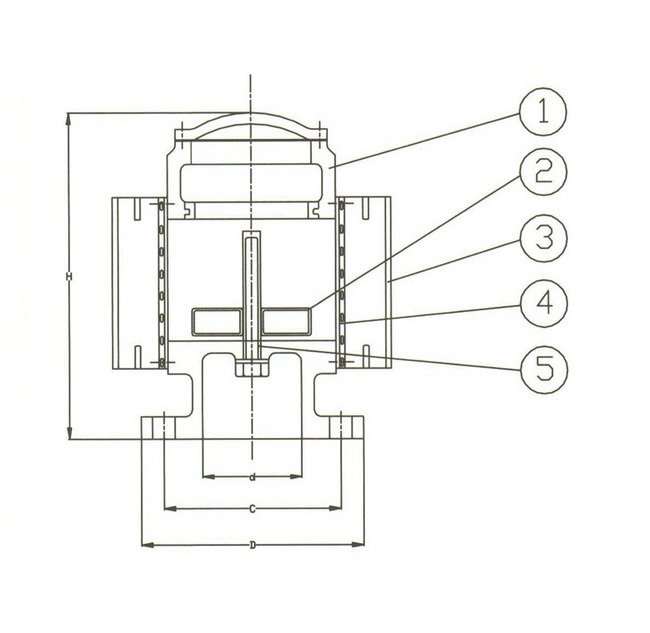

Specifications C
400 mm
Specifications Connection
Flanged Drilled
Specifications D
445 mm
Specifications Disc Material
Stainless Steel
Specifications H
524 mm
Specifications Hole Diameter
22 mm
Specifications Number Of Holes
12
Specifications Seat Material
Stainless Steel
Specifications Size
300
Specifications Stem Material
Stainless Steel
Specifications Weight
146 kg
