DIN PN10 Cast Iron Vent Check Valve, 200mm Size
DIN PN10 Cast Iron Vent Check Valve, 200mm Size
SKU:VAL-c08b2e
Enhance fluid control with the DIN PN10 Cast Iron Vent Check Valve, featuring robust construction, precise dimensions, and corrosion-resistant materials.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
DIN PN10 Cast Iron Vent Check Valve, 200mm Size
$699.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Cast Iron Vent Check Valve, 200mm Size
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 10 Vent Check Cast Iron Valve is a reliable solution for industrial fluid control systems. Constructed with a sturdy Cast Iron body, Stainless Steel disc, and components, this valve ensures durability and efficient performance. With precise dimensions meeting DIN2501-PN10 standards, it offers secure flanged connections for seamless integration. The handwheel Actuator allows for manual operation, while the stainless steel components assure corrosion resistance and longevity. Ideal for applications requiring a dependable check valve, this product combines high-quality materials and precise engineering.

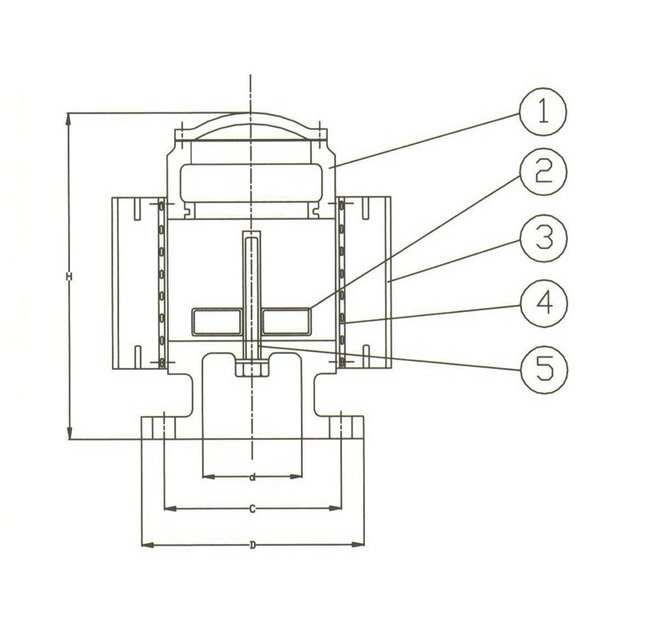

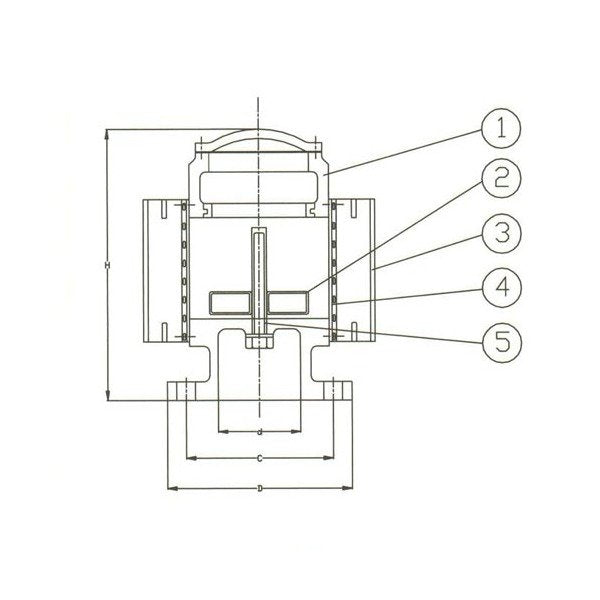

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications Disc Material
Stainless Steel
Specifications H
367 mm
Specifications Hole Diameter
22 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
200
Specifications Stem Material
Stainless Steel
Specifications Weight
74 kg
