DIN PN10 Cast Steel Storm Angle Pattern Valve - GSC-25N2

Name: DIN PN10 Cast Steel Storm Angle Pattern Valve - GSC-25N2
Brand: World Wide Metric, Inc.
SKU: VAL-90f4af
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-90f4af

High-quality DIN PN10 Cast Steel Storm Angle Valve for industrial use, with durable materials and DIN2501-PN10 flanges.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

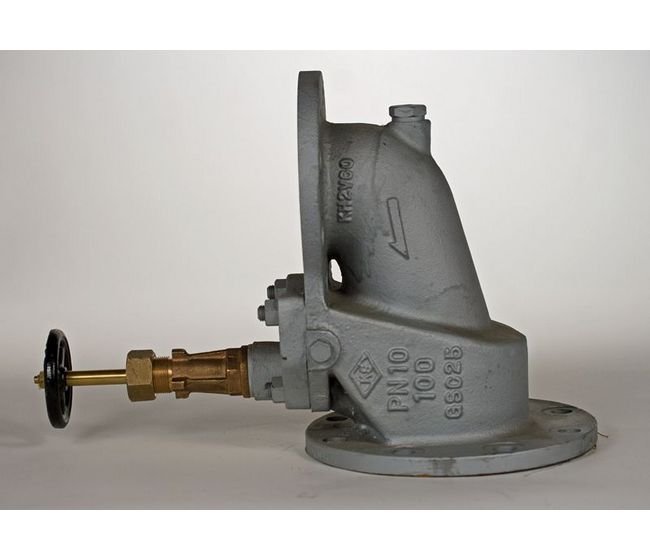

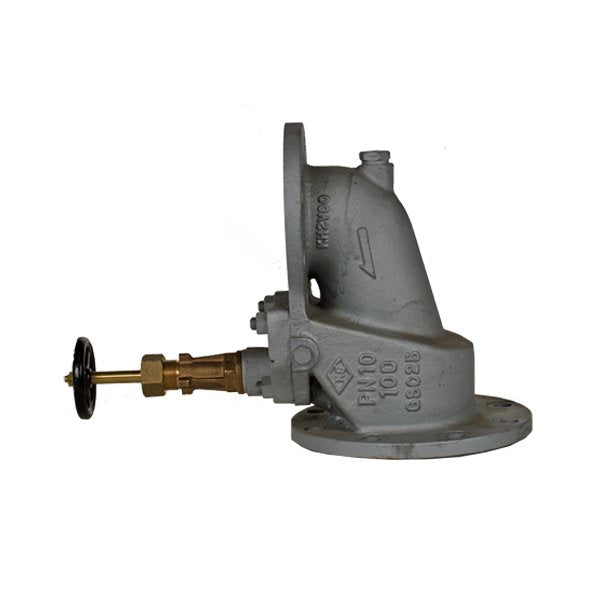

The DIN PN10 Cast Steel Storm Angle Pattern Valve is a robust solution for industrial applications, featuring a cast steel body, bronze disc, and brass stem for durability. With a disc gasket made of NBR material, this valve ensures reliable performance and longevity. Equipped with flanges according to DIN2501-PN10 standards, it offers easy installation and compatibility with existing systems, making it an ideal choice for critical fluid control operations.

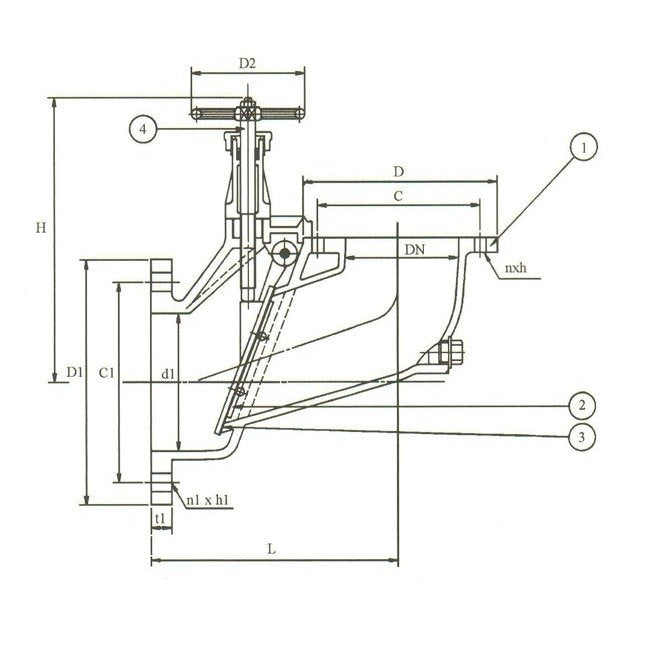

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

180 mm

Specifications C1

240 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D1

285 mm

Specifications D2

100 mm

Specifications Disc Material

Bronze

Specifications H

255 mm

Specifications H1

22 mm

Specifications Hydraulic Inspection Body

5.1

Specifications Hydraulic Inspection Seat

2.0

Specifications Impaissa Code

754288 | 754294

Specifications L

250 mm

Specifications N1 Number Of Holes

Specifications N Number Of Holes

Specifications Seat Material

Brass

Specifications Size

100

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications T1

22 mm

Specifications Weight

27 kg
