DIN PN10 Cast Steel Storm Angle Valve
DIN PN10 Cast Steel Storm Angle Valve
SKU:VAL-dcdd91
High-quality DIN PN10 Cast Steel Storm Angle Valve for industrial use. Durable, corrosion-resistant design for reliable performance.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN10 Cast Steel Storm Angle Valve
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Cast Steel Storm Angle Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

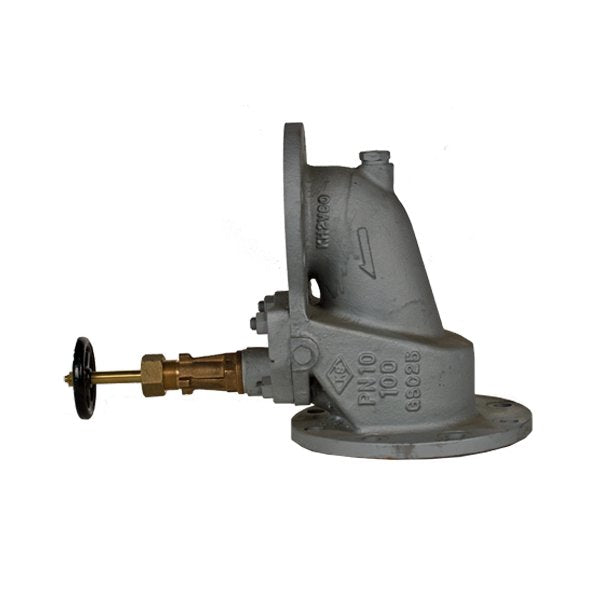

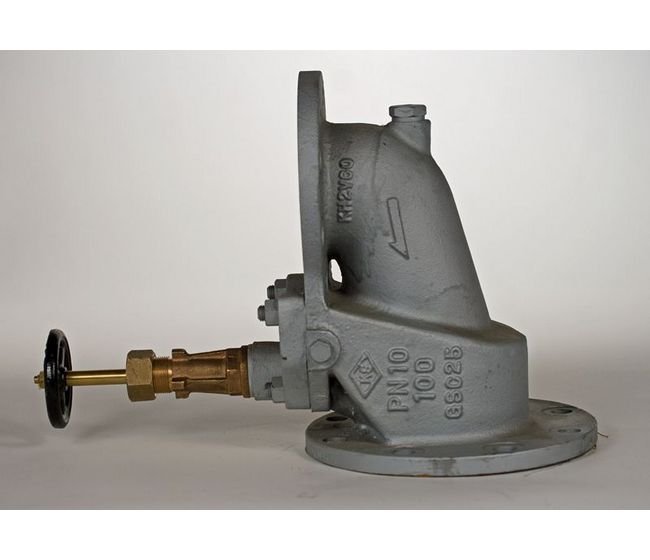

The DIN PN10 Cast Steel Storm Angle Valve is a robust solution designed for reliable performance in industrial settings. With a cast steel body, bronze disc, brass seat, and stem, this valve ensures durability and corrosion resistance. The valve complies with DIN 17053 standards, featuring a handwheel actuator for easy operation. Ideal for hydraulic applications, this valve meets stringent industry requirements for quality and performance.
Ready to Grow Without Cash Flow Constraints?

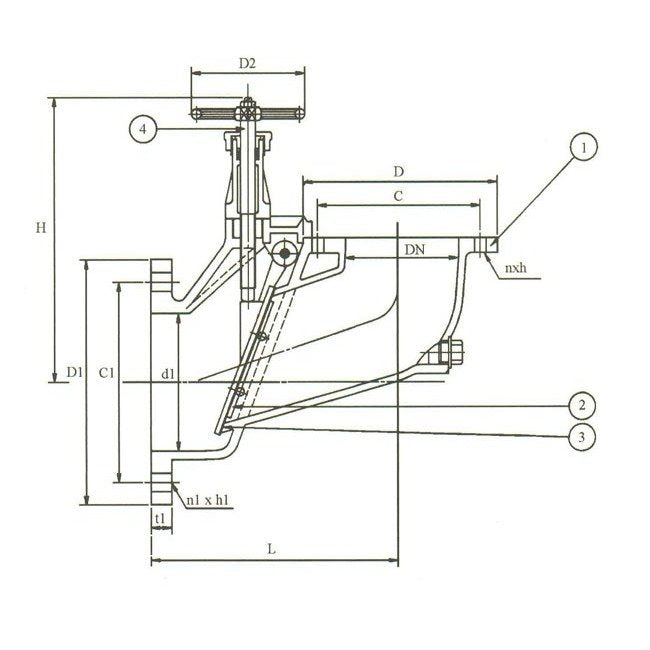

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
160 mm
Specifications C1
210 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D1
250 mm
Specifications D2
100 mm
Specifications Disc Material
Bronze
Specifications H
233 mm
Specifications H1
18 mm
Specifications Hydraulic Inspection Body
5.1
Specifications Hydraulic Inspection Seat
2.0
Specifications Impaissa Code
754287 | 754293
Specifications L
215 mm
Specifications N1 Number Of Holes
8
Specifications N Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
080
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications T1
22 mm
Specifications Weight
18.0 kg
