DIN PN10 Cast Steel Storm Vertical Pattern Valve - 150mm

Name: DIN PN10 Cast Steel Storm Vertical Pattern Valve - 150mm
Brand: World Wide Metric, Inc.
SKU: VAL-672b09
Price: 399.99 USD
Availability: OutOfStock

SKU:VAL-672b09

High-performance Cast Steel Valve with Bronze Disc, ideal for industrial applications. Meets DIN standards.

$399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN10 Cast Steel Storm Vertical Pattern Valve is designed with precision and durability in mind. Constructed with high-quality materials including Cast Steel body, Bronze disc, and Brass stem, this valve ensures reliable performance in demanding environments. The handwheel actuator provides ease of operation, while the Flanged Drilled connection ensures secure installation according to DIN 2501-PN10 standards. Suitable for applications requiring hydraulic pressures up to 5.1 bar, this valve is a dependable choice for industrial settings.

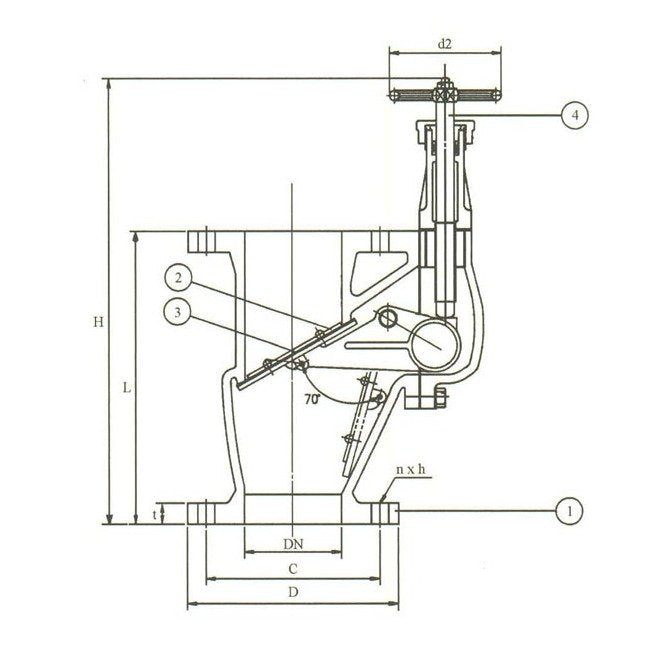

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Steel

Specifications C

240 mm

Specifications Connection

Flanged Drilled

Specifications D

285 mm

Specifications D2

125 mm

Specifications Disc Material

Bronze

Specifications H

622 mm

Specifications Hydraulic Inspection Body

5.1

Specifications Hydraulic Inspection Seat

2.0

Specifications Impaissa Code

754276 | 754282

Specifications L

400 mm

Specifications Number Of Holes

Specifications Seat Material

Brass

Specifications Size

150

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

104.00 kg
