DIN PN10 Double Flanged Long Valves Series 54
DIN PN10 Double Flanged Long Valves Series 54
SKU:VAL-cef170
High-performance DIN PN10 Double Flanged Long Valves Series 54 for industrial applications. Durable materials, reliable operation.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN PN10 Double Flanged Long Valves Series 54
$899.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Double Flanged Long Valves Series 54
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN10 Double Flanged Long Valves Series 54 offer reliable performance in industrial settings, featuring a size range from 50A to 800A and constructed from high-quality materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. With versatile options for disc, stem, seat, and packing materials, these valves ensure efficient operation and durability. They meet ISO 5752 S13 face-to-face standards, making them ideal for diverse applications across industries.
Ready to Grow Without Cash Flow Constraints?

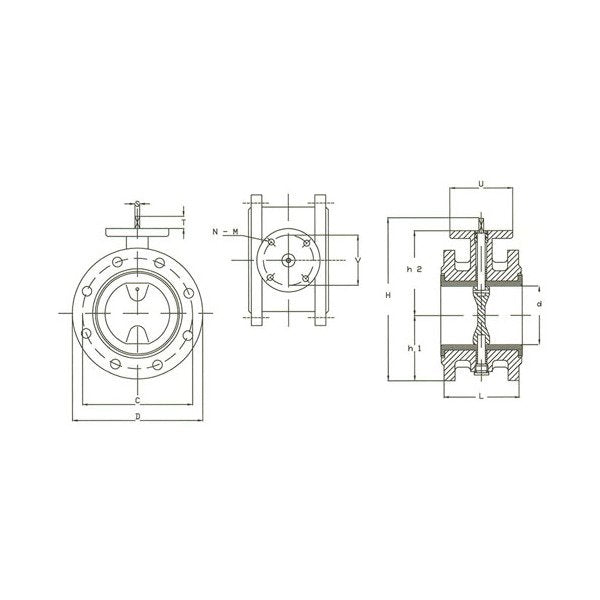

Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel
Specifications Bolt Diameter
22 mm
Specifications C
400 mm
Specifications Connection
Double Flanged
Specifications D
445 mm
Specifications D 1
460 mm
Specifications H
534 mm
Specifications H1
219 mm
Specifications H2
270 mm
Specifications L
270 mm
Specifications Number Of Bolts
12
Specifications Pressure
PN 10
Specifications Size
300 - 12"
Specifications Standard
DIN
Specifications Stem S
24 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
11 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
90.0 kg
