DIN PN10 Mono Flanged Butterfly Valve - Series 56
DIN PN10 Mono Flanged Butterfly Valve - Series 56
SKU:VAL-b5c117
Series 56 Mono Flanged Valve - ISO 5752 S16, DIN PN10, Various Material Options, Ideal for Institutional Use
Regular price
$395.00
Regular price
Sale price
$395.00
Unit price
per
Initiate Order
DIN PN10 Mono Flanged Butterfly Valve - Series 56
$395.00
Quantity: 1
Claim Your Seller Account
DIN PN10 Mono Flanged Butterfly Valve - Series 56
$395.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 56 Mono Flanged Valve, designed as per ISO 5752 S16 standards, features a versatile size range from 50A to 800A (2" to 32"). With body materials such as Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze, this valve ensures durability and performance. Available in Ductile Iron, Stainless Steel, and Aluminum Bronze disc options, along with Stainless Steel stems and NBR, EPDM, Viton, Teflon seat and packaging materials, this valve meets a wide range of requirements in institutional applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

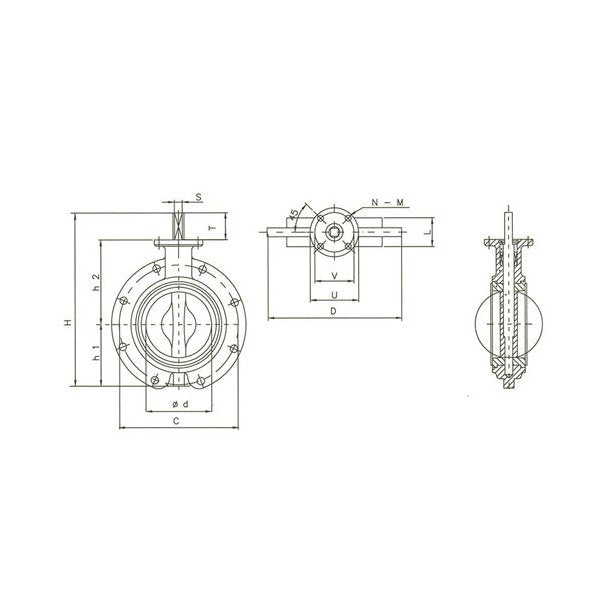

Specifications Bolt Diameter
26 mm
Specifications C
620 mm
Specifications D
670 mm
Specifications D 1
670 mm
Specifications H
823 mm
Specifications H1
360 mm
Specifications H2
413 mm
Specifications L
152 mm
Specifications Number Of Bolts
20
Specifications Pressure
PN 10
Specifications Size
500 - 20"
Specifications Standard
DIN
Specifications Stem S
30 mm
Specifications Stem T
50 mm
Specifications Top Flange To Iso 5211 M Diameter
17 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
175 mm
Specifications Top Flange To Iso 5211 V
140 mm
Specifications Weight
155.0 kg
