DIN PN10 Mono Flanged Butterfly Valves - Series 56
DIN PN10 Mono Flanged Butterfly Valves - Series 56
SKU:VAL-4735bc
Series 56 Mono Flanged Butterfly Valves - DIN PN10, Sizes 50A to 800A, Cast Iron, Stainless Steel, EPDM/NBR/Viton, ISO 5752 Compliant
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
DIN PN10 Mono Flanged Butterfly Valves - Series 56
$289.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Mono Flanged Butterfly Valves - Series 56
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 56 Mono Flanged Valves DIN PN10 offer reliable performance in fluid control applications. With a size range from 50A to 800A, these valves feature body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. The disc, stem, and seat materials are available in options like Ductile Iron, Stainless Steel, Aluminum Bronze, NBR, EPDM, Viton, and Teflon, providing versatility for various environments. Designed as per ISO 5752 standards, these valves ensure precise face-to-face dimensions in compliance with DIN standards.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

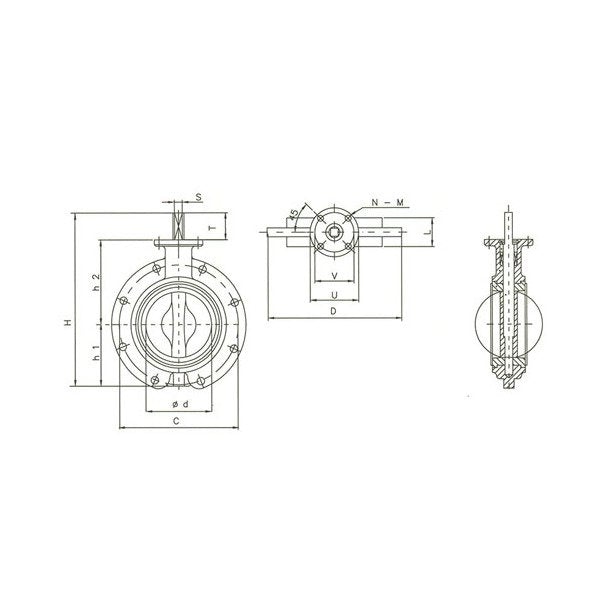

Specifications Bolt Diameter
18 mm
Specifications C
125 mm
Specifications D
165 mm
Specifications D 1
165 mm
Specifications H
215 mm
Specifications H1
63 mm
Specifications H2
118 mm
Specifications L
43 mm
Specifications Number Of Bolts
4
Specifications Pressure
PN 10
Specifications Size
050 - 2"
Specifications Standard
DIN
Specifications Stem S
10 mm
Specifications Stem T
34 mm
Specifications Top Flange To Iso 5211 M Diameter
9 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
90 mm
Specifications Top Flange To Iso 5211 V
70 mm
Specifications Weight
2.8 kg
