The DIN PN10 Series 56 Mono Flanged Valves offer a size range from 50A to 800A (2" to 32") with body materials including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. Suitable for various applications, these valves feature disc materials of Ductile Iron, Stainless Steel, and Aluminum Bronze, along with a sturdy Stainless Steel stem. Choose from NBR, EPDM, Viton, or Teflon seat and packing materials for reliable performance. Compliant with ISO 5752 S16 and DIN standards, these valves ensure durability and efficiency.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

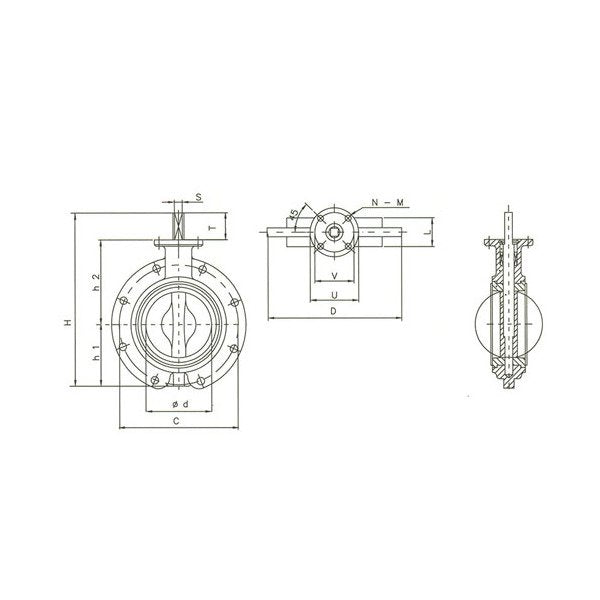

Specifications Bolt Diameter
22 mm
Specifications C
350 mm
Specifications D
395 mm
Specifications D 1
405 mm
Specifications H
484 mm
Specifications H1
194 mm
Specifications H2
245 mm
Specifications L
114 mm
Specifications Number Of Bolts
12
Specifications Pressure
PN 10
Specifications Size
250 - 10"
Specifications Standard
DIN
Specifications Stem S
24 mm
Specifications Stem T
45 mm
Specifications Top Flange To Iso 5211 M Diameter
11 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4 mm
Specifications Top Flange To Iso 5211 U
125 mm
Specifications Top Flange To Iso 5211 V
102 mm
Specifications Weight
28.0 kg
