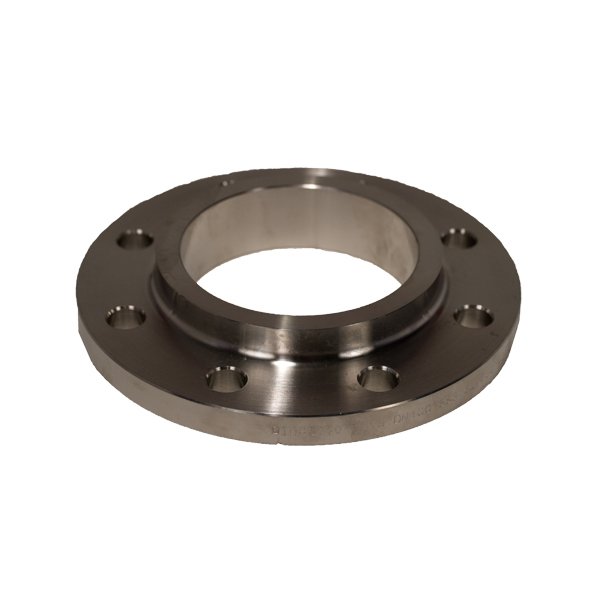

DIN PN10 Stainless Steel Slip-On Flange - Raised Face Design

Name: DIN PN10 Stainless Steel Slip-On Flange - Raised Face Design
Brand: World Wide Metric, Inc.
SKU: FLA-1db356
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-1db356

High-quality DIN PN10 Stainless Steel Slip-On Flange with raised face design for secure and reliable industrial connections.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Our Raised Faced Slip-On Flanges are expertly crafted from durable stainless steel, meeting stringent DIN PN10 standards. With precise specifications including d: 219.1mm, D: 340mm, C: 295mm, and more, these flanges guarantee secure connections with 8 bolts, ensuring reliability under pressure. Engineered for longevity and performance, they are ideal for industrial applications requiring high-quality, compliant components.

Product Specifications

Specifications C

295 mm

Specifications D

340 mm

Specifications H

22 mm

Specifications H1

44 mm

Specifications Impaissa Code

735764

Specifications Material

Stainless Steel

Specifications Number Of Bolts

Specifications Pressure

DIN PN10

Specifications Size

200 - 8"

Specifications T

24 mm

Specifications Weight

9.90 kg

DIN PN10 Stainless Steel Slip-On Flange - Raised Face Design
