DIN PN10 Steel Blind Flanges - 28" Diameter

Name: DIN PN10 Steel Blind Flanges - 28" Diameter
Brand: World Wide Metric, Inc.
SKU: FLA-c13c9e
Price: 189.99 USD
Availability: OutOfStock

SKU:FLA-c13c9e

Boost your piping systems with our DIN PN10 Steel Blind Flanges - perfect fit, durable makeup, superior pressure resistance.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

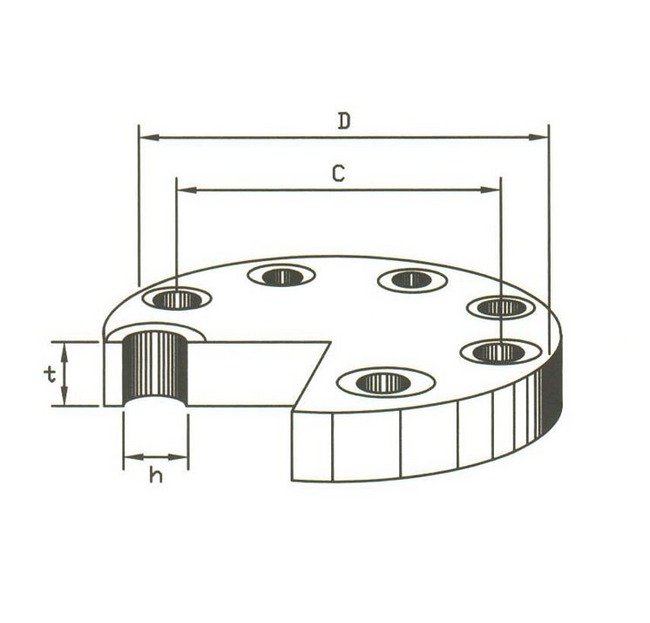

Enhance your industrial piping systems with our DIN PN10 Steel Blind Flanges. With a precise size of 711mm, these flanges offer superior pressure resistance at DIN PN 10. Made of durable Carbon Steel, these flanges feature dimensions of D: 895mm, C: 840mm, and come with 24 bolts for secure installation. The 30mm height and 38mm thickness ensure reliability and longevity in various applications.

Product Specifications

Specifications C

840 mm

Specifications D

895 mm

Specifications H

30 mm

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

DIN PN 10

Specifications Size

700 - 28"

Specifications T

38 mm
