DIN PN10 Steel Blind Flanges - 4"
DIN PN10 Steel Blind Flanges - 4"
SKU:FLA-edf016
High-quality DIN PN10 Steel Blind Flanges in 4" size, meeting DIN PN 10 pressure standards for industrial applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
DIN PN10 Steel Blind Flanges - 4"
$49.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Steel Blind Flanges - 4"
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

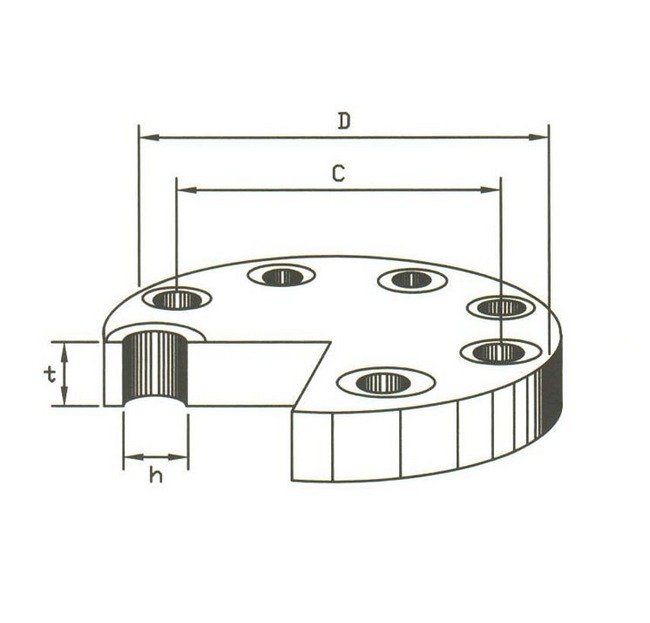

Our DIN PN10 Steel Blind Flanges are crafted from carbon steel, meeting stringent institutional standards for durability and performance. With a size range of 100 - 4", these flanges offer reliability under pressure up to DIN PN 10. Featuring precise dimensions of d: 115.9mm, D: 220mm, and C: 180mm, along with 8 bolts for secure fastening, these blind flanges are engineered for longevity. Weighing 4.6 kg, these flanges are robust with a thickness of h: 18mm and t: 20mm, making them ideal for industrial applications.
Product Specifications
Specifications C
180 mm
Specifications D
220 mm
Specifications H
18 mm
Specifications Material
Carbon Steel
Specifications Number Of Bolts
8
Specifications Pressure
DIN PN 10
Specifications Size
100 - 4"
Specifications T
20 mm
Specifications Weight
4.6 kg
