DIN PN10 Steel Blind Flanges - Size 14"

Name: DIN PN10 Steel Blind Flanges - Size 14"
Brand: World Wide Metric, Inc.
SKU: FLA-9b0da2
Price: 289.99 USD
Availability: OutOfStock

SKU:FLA-9b0da2

High-quality DIN PN10 Steel Blind Flanges - Ideal for industrial applications, strong and reliable sealing at DIN PN 10 pressure.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

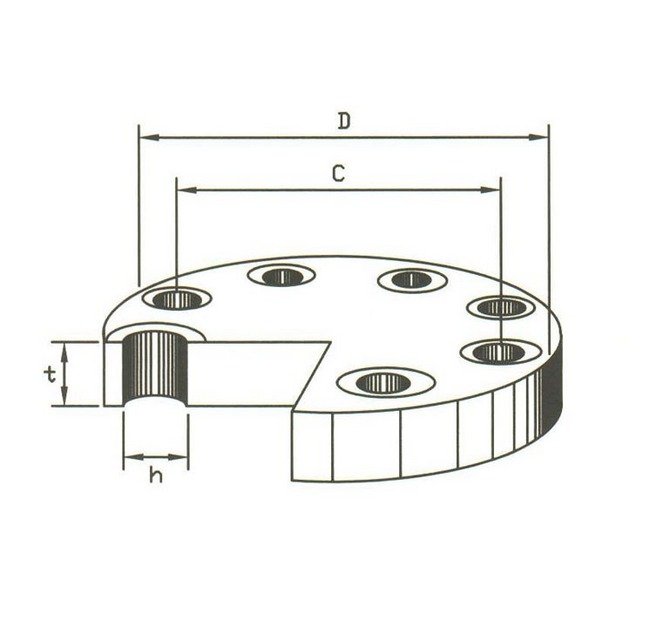

The DIN PN10 Steel Blind Flanges are designed for exceptional performance and durability in industrial applications. With a Size of 14", Pressure rating of DIN PN 10, and constructed from high-grade Carbon Steel, these blind flanges ensure reliable sealing and connection. Featuring precise dimensions (d: 355.6 mm, D: 505 mm, C: 460 mm), 16 bolts for secure installation, and a weight of 37.10 kg, they meet stringent quality standards for efficiency and safety. Ideal for systems requiring robust flange solutions, these blind flanges offer superior strength and longevity.

Product Specifications

Specifications C

460 mm

Specifications D

505 mm

Specifications H

22 mm

Specifications Impaissa Code

735637

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

DIN PN 10

Specifications Size

350 - 14"

Specifications T

26 mm

Specifications Weight

37.10 kg

DIN PN10 Steel Blind Flanges - Size 14"
