DIN PN10 Steel Flat Faced Slip-On Flanges - 350mm (14")

Name: DIN PN10 Steel Flat Faced Slip-On Flanges - 350mm (14")
Brand: World Wide Metric, Inc.
SKU: FLA-68b275
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-68b275

Upgrade to precision-engineered DIN PN10 Steel Flanges for reliable industrial applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your piping system with these robust DIN PN10 Steel Flat Faced Slip-On Flanges. Constructed from high-quality carbon steel, these flanges offer a seamless fit, ensuring maximum efficiency and durability. With precise dimensions meeting industry standards, including a pressure rating of PN 10, 16 bolts for secure installation, and a weight of 16.40 kg, these flanges are ideal for a wide range of applications in institutional settings.

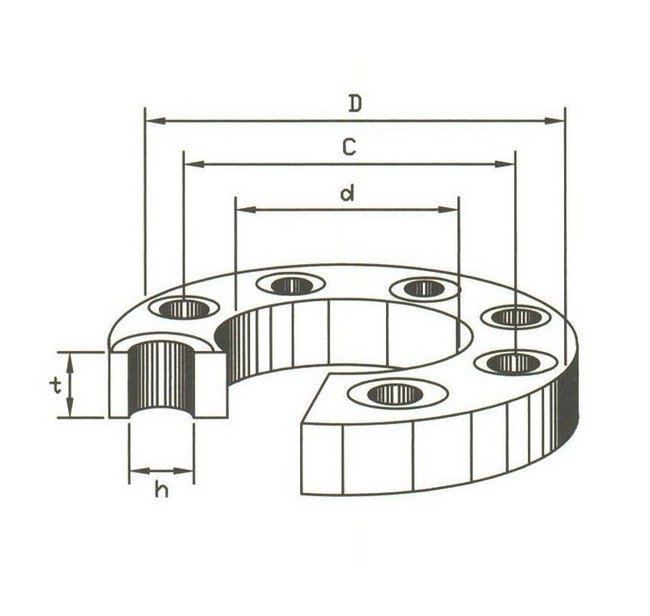

Product Specifications

Specifications C

460 mm

Specifications D

505 mm

Specifications H

22 mm

Specifications Impaissa Code

735537

Specifications Material

Carbon Steel

Specifications Number Of Bolts

Specifications Pressure

PN 10

Specifications Size

350 - 14"

Specifications T

30 mm

Specifications Weight

16.40 kg

DIN PN10 Steel Flat Faced Slip-On Flanges - 350mm (14")
