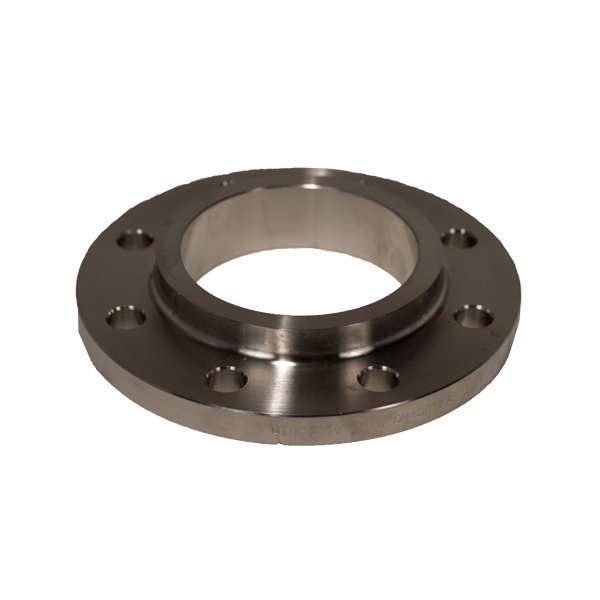

DIN PN10 Steel Raised Faced Slip-On Flange

Name: DIN PN10 Steel Raised Faced Slip-On Flange
Brand: World Wide Metric, Inc.
SKU: FLA-15f443
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-15f443

DIN PN10 Steel Raised Faced Slip-On Flange - Reliable, durable, and compliant with PN 16 pressure rating. Ideal for industrial piping applications.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

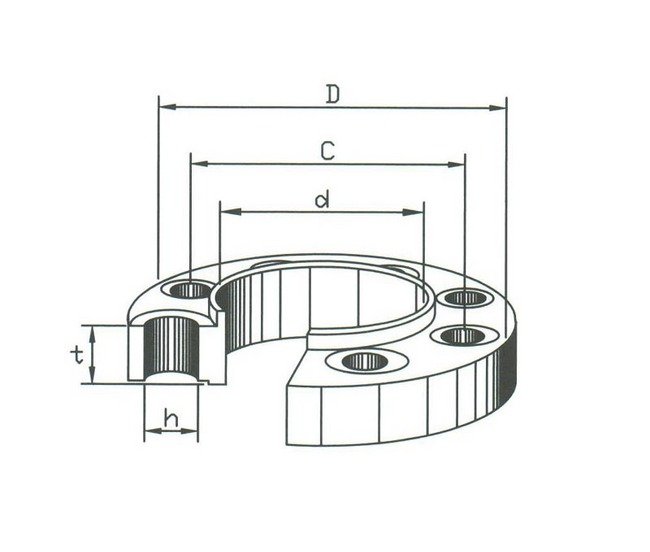

The DIN PN10 Steel Raised Faced Slip-On Flange is designed for reliable and efficient piping connections in industrial applications. With a size range of 125 - 5", this flange offers a pressure rating of PN 16, ensuring secure seals under varying pressure conditions. Featuring precise dimensions (d: 139.7 mm, D: 250 mm, C: 210 mm) and a sturdy construction with 8 bolts, this flange provides stability and durability. Weighing 5.80 kg, it meets stringent IMPA/ISSA Code 735761 standards, making it an ideal choice for institutional procurement needs.

Product Specifications

Specifications C

210 mm

Specifications D

250 mm

Specifications H

18 mm

Specifications H1

40 mm

Specifications Impaissa Code

735761

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

125 - 5"

Specifications T

22 mm

Specifications Weight

5.80 kg

DIN PN10 Steel Raised Faced Slip-On Flange
