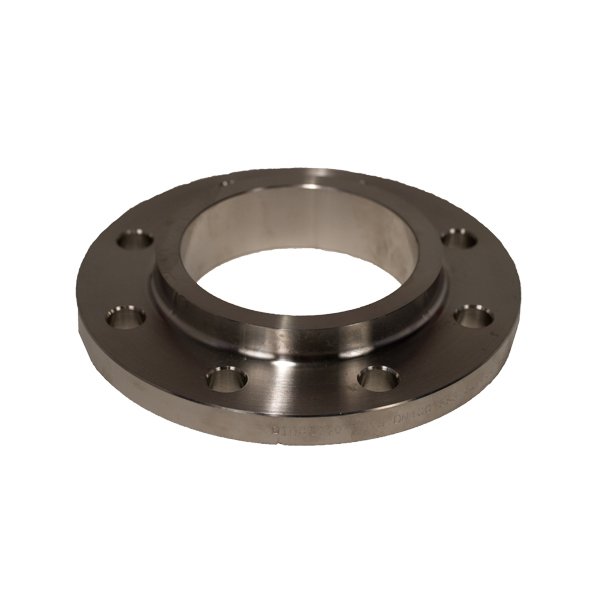

DIN PN10 Steel Raised Faced Slip-On Flanges
DIN PN10 Steel Raised Faced Slip-On Flanges
SKU:FLA-631624
Premium DIN PN10 Steel Raised Faced Slip-On Flanges for secure and compliant industrial connections.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
DIN PN10 Steel Raised Faced Slip-On Flanges
$199.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Steel Raised Faced Slip-On Flanges
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

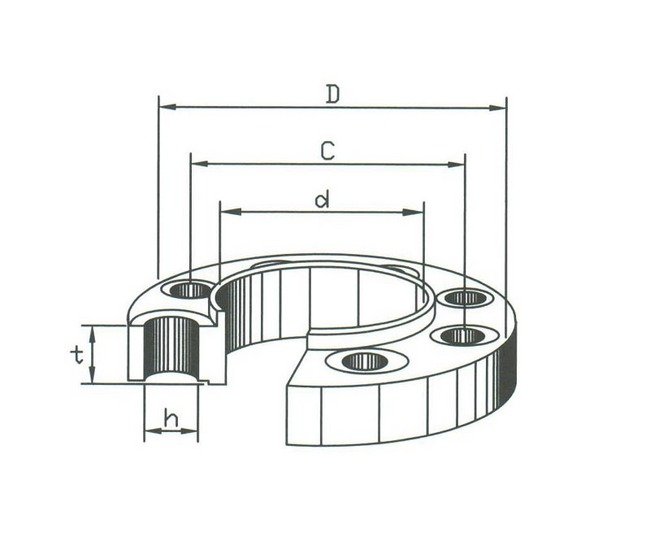

The DIN PN10 Steel Raised Faced Slip-On Flanges are precision-engineered for superior performance in industrial settings. With a size range of 350 - 14 inches and a pressure rating of PN 10, these flanges ensure secure connections that meet stringent DIN standards. Featuring 16 bolts for robust fastening, these flanges have precise dimensions (d: 355.6mm, D: 505mm, C: 460mm) and a sturdy construction for durability. Weighing 22.30 kg, these flanges are reliable, compliant, and ideal for projects requiring high-quality components.
Product Specifications
Specifications C
460 mm
Specifications D
505 mm
Specifications H
22 mm
Specifications H1
53 mm
Specifications Impaissa Code
735767
Specifications Number Of Bolts
16
Specifications Pressure
PN 10
Specifications Size
350 - 14"
Specifications T
26 mm
Specifications Weight
22.30 kg
