DIN PN10 Steel Raised Faced Slip-On Flanges - 20"
DIN PN10 Steel Raised Faced Slip-On Flanges - 20"
SKU:FLA-b5b591
High-quality DIN PN10 Steel Slip-On Flanges for secure and precise industrial connections. Size: 20", Pressure: PN 10.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
DIN PN10 Steel Raised Faced Slip-On Flanges - 20"
$139.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Steel Raised Faced Slip-On Flanges - 20"
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

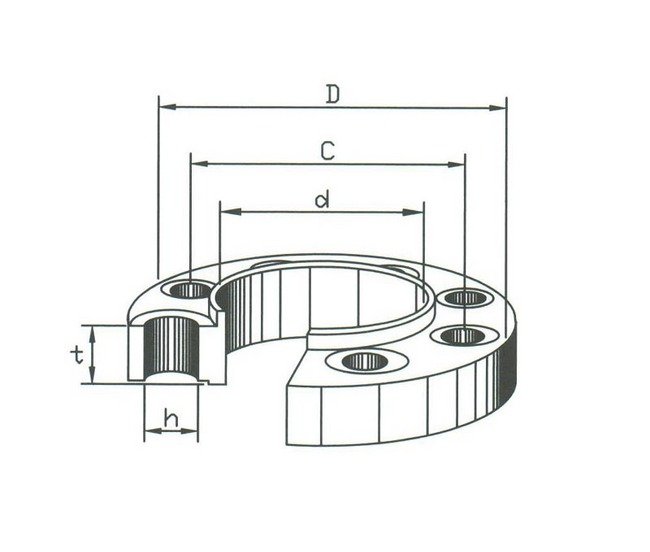

The DIN PN10 Steel Raised Faced Slip-On Flanges are precision-engineered for durability and reliability. With a size of 20" and PN 10 pressure rating, these flanges ensure a secure connection, supported by 20 bolts and precise measurements of d: 508 mm, D: 670 mm, and C: 620 mm. Weighing 37.30 kg, these flanges meet stringent industry standards and are ideal for industrial applications requiring robust performance and compliance.
Product Specifications
Specifications C
620 mm
Specifications D
670 mm
Specifications H
26 mm
Specifications H1
67 mm
Specifications Impaissa Code
735769
Specifications Number Of Bolts
20
Specifications Pressure
PN 10
Specifications Size
500 - 20"
Specifications T
28 mm
Specifications Weight
37.30 kg
