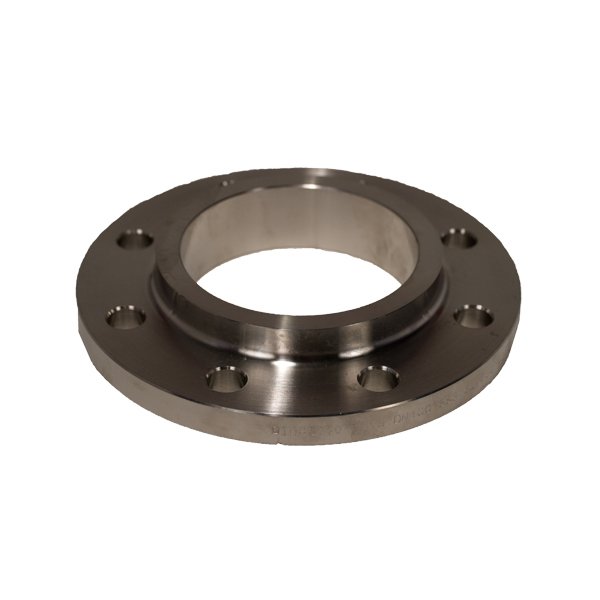

DIN PN10 Steel Raised Faced Slip-On Flanges
DIN PN10 Steel Raised Faced Slip-On Flanges
SKU:FLA-48ad62
Precision-engineered DIN PN10 Steel Flanges for secure and durable connections in institutional projects.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
DIN PN10 Steel Raised Faced Slip-On Flanges
$89.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Steel Raised Faced Slip-On Flanges
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

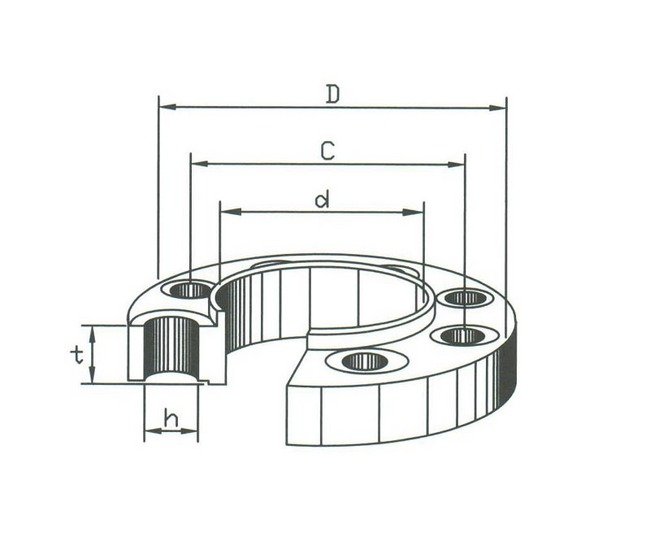

The DIN PN10 Steel Raised Faced Slip-On Flanges are designed for durability and precision. With a size range of 150 to 6", suitable for PN 16 pressure ratings, these flanges ensure secure connections with their 8-bolt configuration. Crafted with exacting standards, including dimensions like d=168.3 mm, D=285 mm, and C=240 mm, these flanges meet stringent industry requirements, making them ideal for institutional and government projects.
Product Specifications
Specifications C
240 mm
Specifications D
285 mm
Specifications H
22 mm
Specifications H1
7.1 mm
Specifications Impaissa Code
735762
Specifications Number Of Bolts
8
Specifications Pressure
PN 16
Specifications Size
150 - 6"
Specifications T
22 mm
