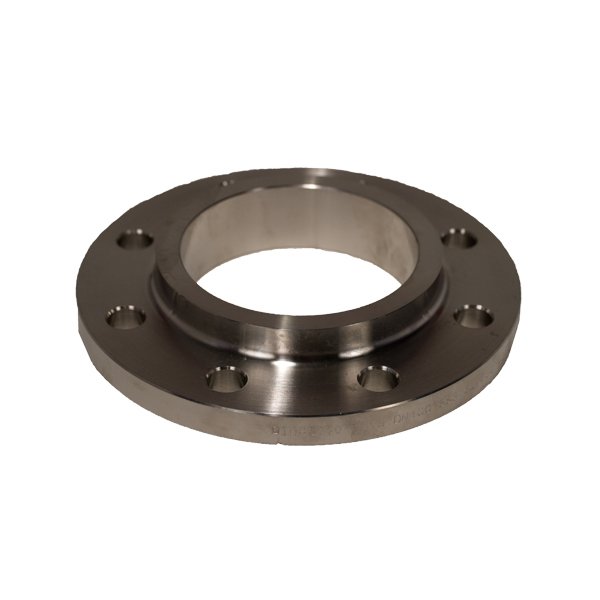

DIN PN10 Steel Slip-On Flange - 7" Raised Face

Name: DIN PN10 Steel Slip-On Flange - 7" Raised Face
Brand: World Wide Metric, Inc.
SKU: FLA-510487
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-510487

Premium DIN PN10 Steel Slip-On Flange for secure and efficient piping connections.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

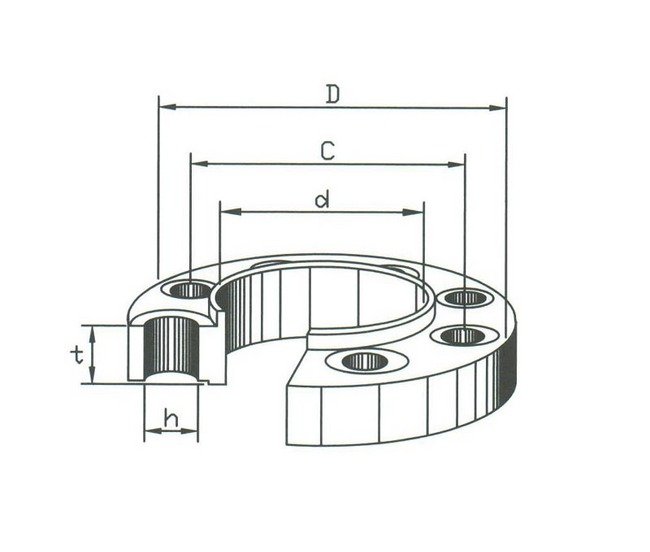

The Raised Faced Slip-On Flanges DIN PN10 Steel provide a reliable and durable connection for piping systems. With a pressure rating of PN 16, these flanges feature a precise size of 196.1mm (d) x 315mm (D) x 270mm (C) and include 8 bolts for secure installation. Weighing 9.10 kg, these flanges are crafted to meet stringent industry standards for quality and performance.

Product Specifications

Specifications C

270 mm

Specifications D

315 mm

Specifications H

22 mm

Specifications H1

44 mm

Specifications Impaissa Code

735763

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

175 - 7"

Specifications T

24 mm

Specifications Weight

9.10 kg

DIN PN10 Steel Slip-On Flange - 7" Raised Face
