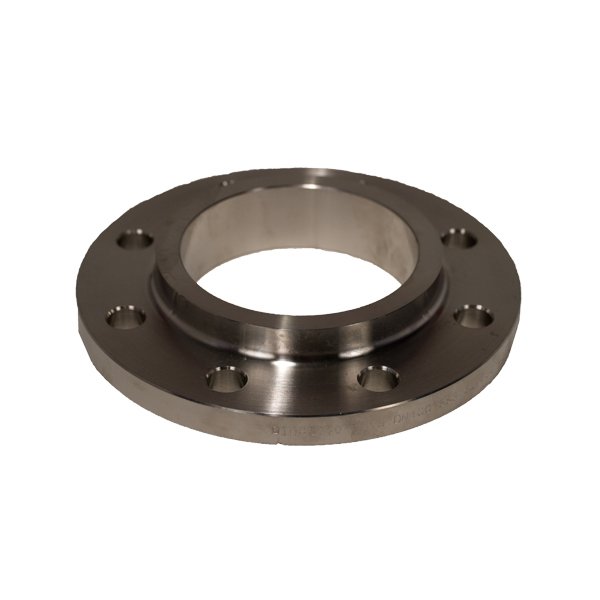

DIN PN10 Steel Slip-On Flange, Raised Face, 8", PN16

Name: DIN PN10 Steel Slip-On Flange, Raised Face, 8", PN16
Brand: World Wide Metric, Inc.
SKU: FLA-82f1a8
Price: 89.99 USD
Availability: OutOfStock

SKU:FLA-82f1a8

Enhance your piping system with these DIN PN10 Steel Slip-On Flanges. Reliable, durable, and PN 16 pressure rated.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

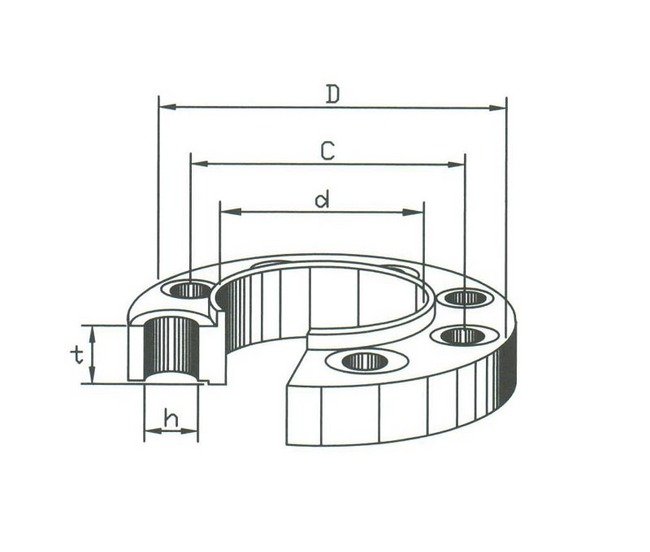

The Raised Faced Slip-On Flanges DIN PN10 Steel is designed for durable and leak-proof connections in industrial piping systems. With a size range of 200 - 8" and a pressure rating of PN 16, these flanges ensure reliable performance under high pressure conditions. Featuring precise specifications including d: 219.1 mm, D: 340 mm, C: 295 mm, Number of Bolts: 12, h: 22 mm, t: 24 mm, H1: 44 mm, and a weight of 9.90 kg. Compliant with industry standards, these flanges guarantee quality and longevity in your procurement needs.

Product Specifications

Specifications C

295 mm

Specifications D

340 mm

Specifications H

22 mm

Specifications H1

44 mm

Specifications Impaissa Code

735764

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

200 - 8"

Specifications T

24 mm

Specifications Weight

9.90 kg
