DIN PN10 Steel Slip-On Flanges - 1/2" Size, PN 16 Pressure

Name: DIN PN10 Steel Slip-On Flanges - 1/2" Size, PN 16 Pressure
Brand: World Wide Metric, Inc.
SKU: FLA-5b73f5
Price: 29.99 USD
Availability: OutOfStock

SKU:FLA-5b73f5

Precision-made 1/2" DIN PN10 Steel Slip-On Flanges with PN 16 pressure rating. Durable, precise fit, weighs 0.722kg.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

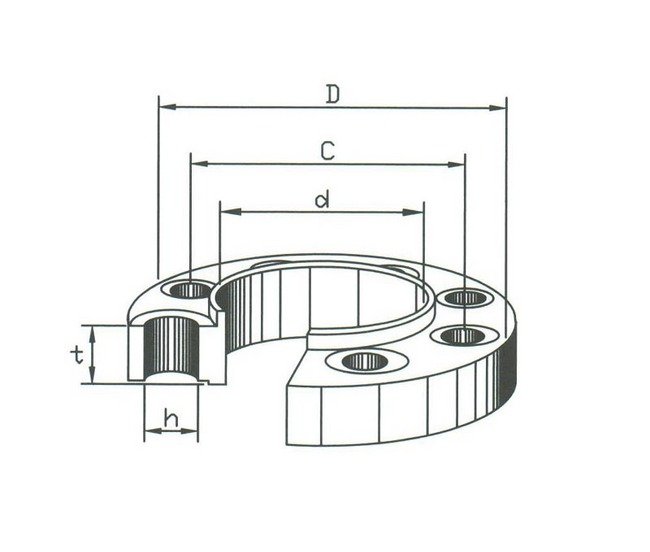

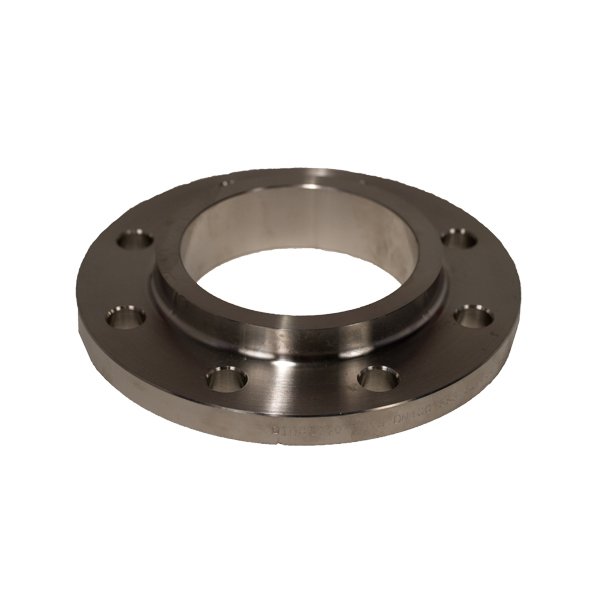

The Raised Faced Slip-On Flanges DIN PN10 Steel are precision-engineered for secure pipe connections. With a size of 1/2", these flanges are designed to withstand PN 16 pressure ratings. Crafted from durable steel with exact dimensions (d: 21.3mm, D: 95mm, C: 65mm), ensuring a perfect fit. This product comes with 4 bolts, measuring h: 14mm and t: 16mm, weighing 0.722kg. Compliant with IMPA/ISSA Code 735752.

Product Specifications

Specifications C

65 mm

Specifications D

95 mm

Specifications H

14 mm

Specifications H1

22 mm

Specifications Impaissa Code

735752

Specifications Number Of Bolts

Specifications Pressure

PN 16

Specifications Size

015 - 1/2"

Specifications T

16 mm

Specifications Weight

0.722 kg

DIN PN10 Steel Slip-On Flanges - 1/2" Size, PN 16 Pressure
