DIN PN10 Teflon Lined Valves - Series 58
DIN PN10 Teflon Lined Valves - Series 58
SKU:VAL-26eb8d
Series 58 Teflon Lined Valves - DIN PN10, with ISO 5752 S-20 Face to Face conformity, available in sizes 2" - 24" with versatile material options.
Regular price
$359.99
Regular price
Sale price
$359.99
Unit price
per
Initiate Order
DIN PN10 Teflon Lined Valves - Series 58
$359.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Teflon Lined Valves - Series 58
$359.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Series 58 Teflon Lined Valves DIN PN10 are meticulously designed with a face to face conformance to ISO 5752 S-20 and a sturdy Flange Connection according to DIN standards. Available in a size range of 50A - 600A (2" - 24"), these valves feature a robust construction with body material options including Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, and Bronze. With disc material choices of Ductile Iron, Stainless Steel, and Aluminum Bronze, along with a stem crafted from Stainless Steel, these valves ensure durability and reliability. The Seat and Packaging materials including NBR, EPDM, Viton, and Teflon, provide excellent sealing properties for various applications.
Product Specifications
Specifications Available Disc Material
Aluminum Bronze | Ductile Iron | Stainless Steel
Specifications Available Packing Material
EPDM | NBR | Viton
Specifications Available Seat Material
EPDM | NBR | Teflon | Viton
Specifications Available Stem Material
Stainless Steel
Specifications Body Material
Bronze | Carbon Steel | Cast Iron | Ductile Iron | Stainless Steel

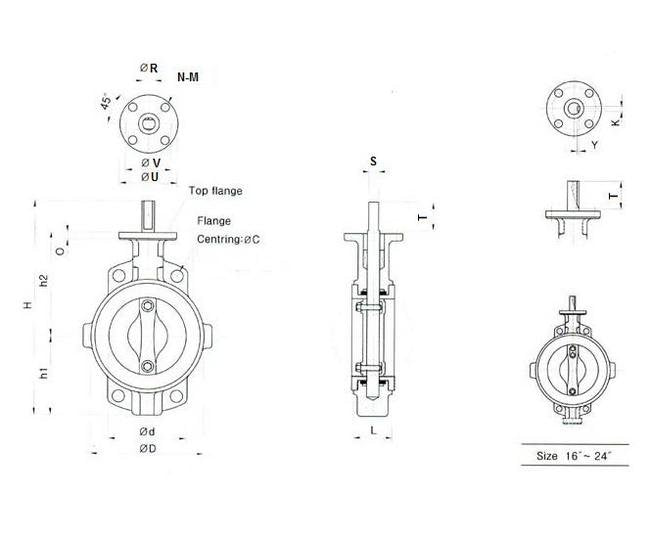

Specifications Bolt Diameter
27 mm
Specifications C
620 mm
Specifications D
586 mm
Specifications H
1008 mm
Specifications H1
421 mm
Specifications H2
485 mm
Specifications L
127 mm
Specifications Number Of Bolts
20
Specifications O
34 mm
Specifications Pressure
PN 10
Specifications Size
500 - 20"
Specifications Standard
DIN
Specifications Stem K
10 mm
Specifications Stem R
45 mm
Specifications Stem T
60 mm
Specifications Stem Y
5 mm
Specifications Top Flange To Iso 5211 M Diameter
22 mm
Specifications Top Flange To Iso 5211 N Number Of Tap Holes
4
Specifications Top Flange To Iso 5211 U
210 mm
Specifications Top Flange To Iso 5211 V
165 mm
Specifications Weight
115.0 kg
