DIN PN10 Vent Check Cast Iron Valve - 350mm
DIN PN10 Vent Check Cast Iron Valve - 350mm
SKU:VAL-fa81b1
High-quality DIN PN10 Cast Iron Valve for efficient fluid control. Compliant with DIN2501-PN10 standards.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
DIN PN10 Vent Check Cast Iron Valve - 350mm
$899.99
Quantity: 1
Claim Your Seller Account
DIN PN10 Vent Check Cast Iron Valve - 350mm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

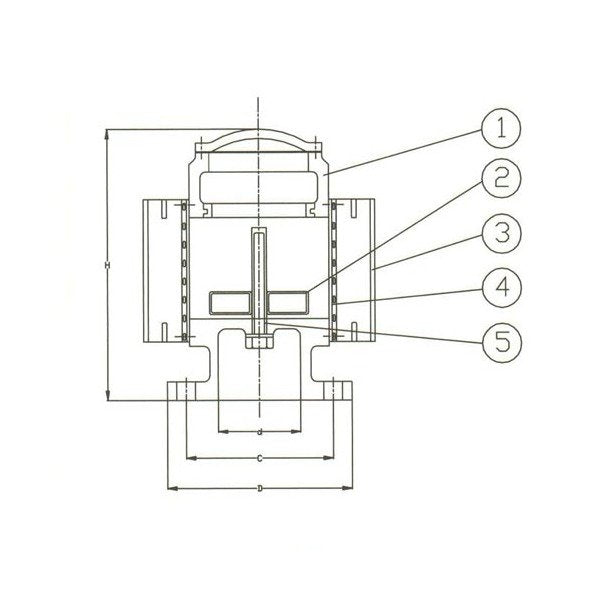

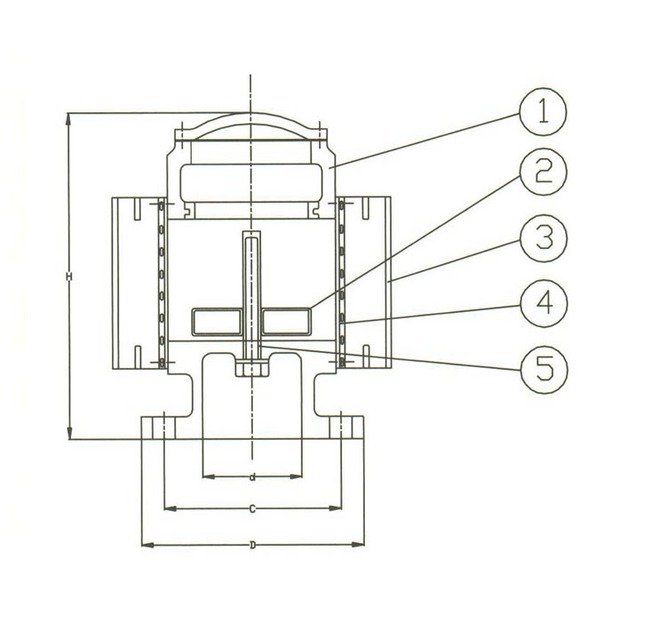

The DIN PN10 Vent Check Cast Iron Valve is a durable solution for fluid control applications. Constructed with a Cast Iron body, Stainless Steel disc, seat, stem, and screen cover, this valve ensures reliable performance. The valve features 16 holes with a 22mm diameter, Flanged Drilled connection, and a handwheel actuator for easy operation. With a size of 350mm and weighing 199 kg, this valve provides secure and efficient flow regulation. Compliant with DIN2501-PN10 standards, it meets the stringent requirements of institutional and government procurement.
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
460 mm
Specifications Connection
Flanged Drilled
Specifications D
505 mm
Specifications Disc Material
Stainless Steel
Specifications H
595 mm
Specifications Hole Diameter
22 mm
Specifications Number Of Holes
16
Specifications Seat Material
Stainless Steel
Specifications Size
350
Specifications Stem Material
Stainless Steel
Specifications Weight
199 kg
