DIN PN100 Cast Steel Globe SDNR Valve 025 Size
DIN PN100 Cast Steel Globe SDNR Valve 025 Size
SKU:VAL-fb4b2b
High-quality DIN PN100 Cast Steel Globe Valve for reliable hydraulic performance. ISO5752 compliant.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
DIN PN100 Cast Steel Globe SDNR Valve 025 Size
$249.99
Quantity: 1
Claim Your Seller Account
DIN PN100 Cast Steel Globe SDNR Valve 025 Size
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN100 Cast Steel Globe SDNR Valve is crafted from high-quality materials including Cast Steel body, Stellited seat, and disc for long-lasting durability. Featuring a Stainless Steel stem and flanged connection for easy installation, this valve ensures reliable performance in hydraulic systems. With compliance to ISO5752 standards, it meets stringent requirements for institutional and governmental procurement.

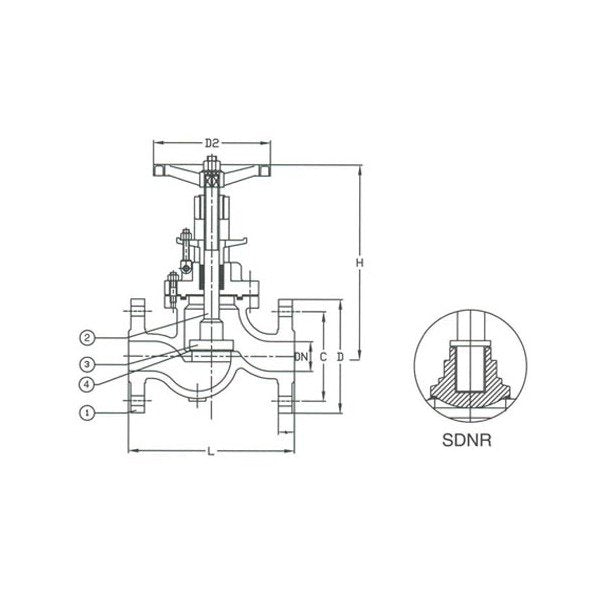

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
100 mm
Specifications Connection
Flanged Drilled
Specifications D
140 mm
Specifications D2
150 mm
Specifications Disc Material
Stellited
Specifications H
310 mm
Specifications Hydraulic Inspection Body
150
Specifications Hydraulic Inspection Seat
100
Specifications L
230 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stellited
Specifications Size
025
Specifications Stem Material
Stainless Steel
Specifications T
24 mm
Specifications Weight
13.0 kg
