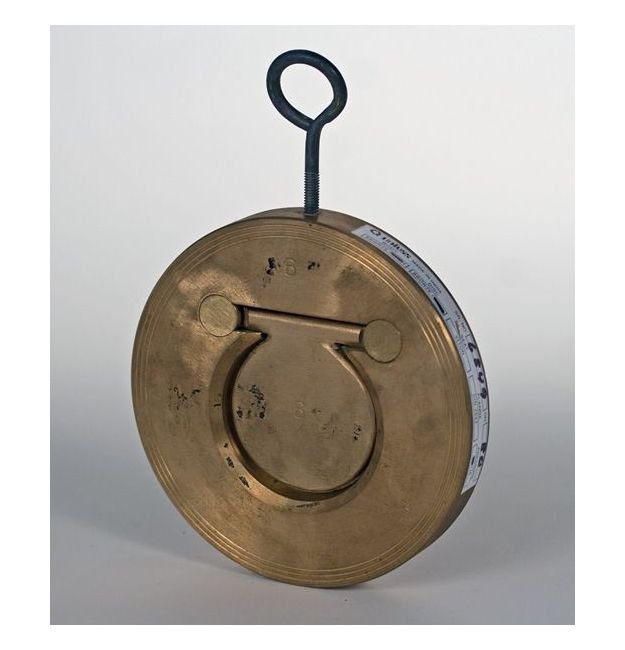

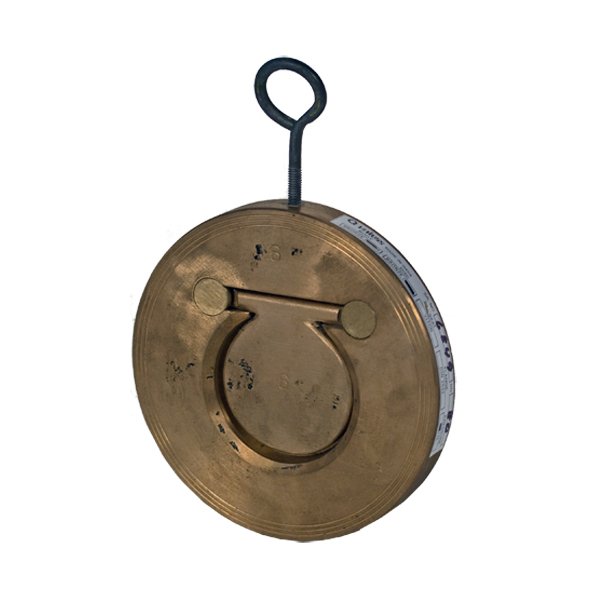

DIN PN16 Bronze Swing Check Valve, Wafer Style
DIN PN16 Bronze Swing Check Valve, Wafer Style
SKU:VAL-6bed07
DIN PN16 Bronze Swing Check Valve with versatile seat options, ideal for industrial and institutional applications.
Regular price
$349.00
Regular price
Sale price
$349.00
Unit price
per
Initiate Order
DIN PN16 Bronze Swing Check Valve, Wafer Style
$349.00
Quantity: 1
Claim Your Seller Account
DIN PN16 Bronze Swing Check Valve, Wafer Style
$349.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Bronze Swing Check Valve is a durable solution for fluid control systems. Constructed with gunmetal body and disc options in compliance with DIN standards. Featuring NBR, EPDM, Viton, or Teflon seat options for versatile applications. With brass stem material and suitable for gravity actuation, this valve meets rigorous hydraulic inspection standards. Ideal for industrial, marine, and institutional settings requiring reliable performance.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze

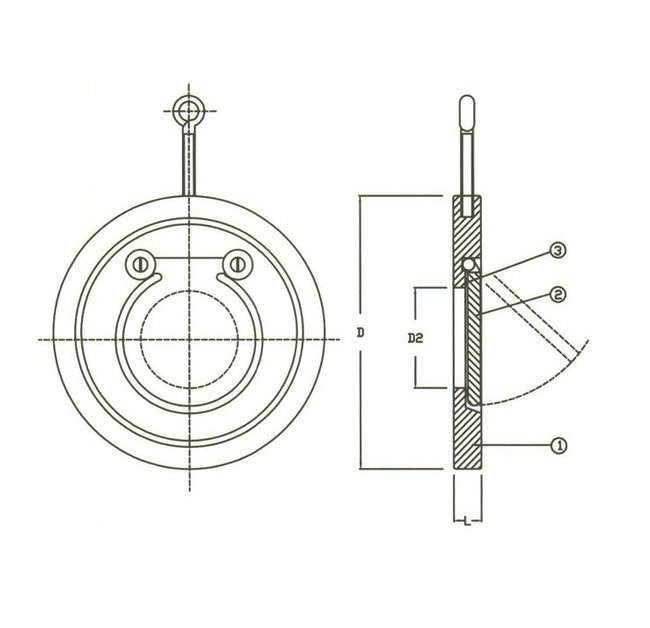

Specifications D
498 mm
Specifications D2
305 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications Impaissa Code
755987
Specifications L
51.0 mm
Specifications Seat Material
Synthetic Material
Specifications Size
400
Specifications Stem Material
Brass
Specifications Weight
55.0 kg
