DIN PN16 Cast Iron Angle SDNR Valve
DIN PN16 Cast Iron Angle SDNR Valve
SKU:VAL-0260d7
Durable DIN PN16 Cast Iron Angle SDNR Valve with Stainless Steel components for industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
DIN PN16 Cast Iron Angle SDNR Valve
$129.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Iron Angle SDNR Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

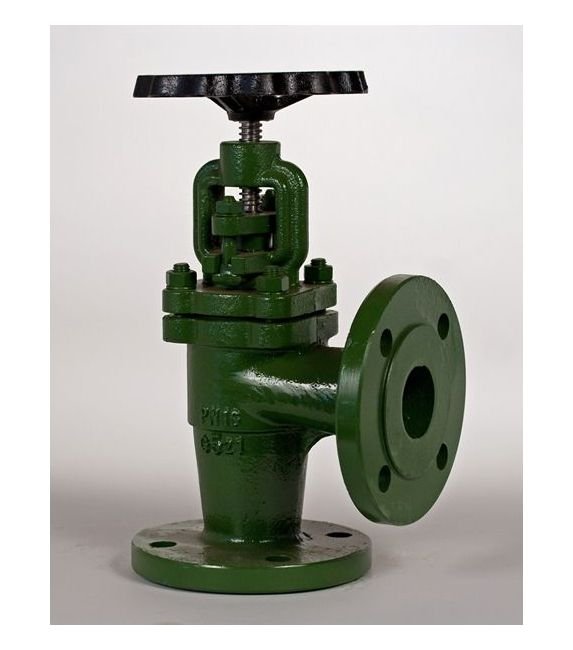

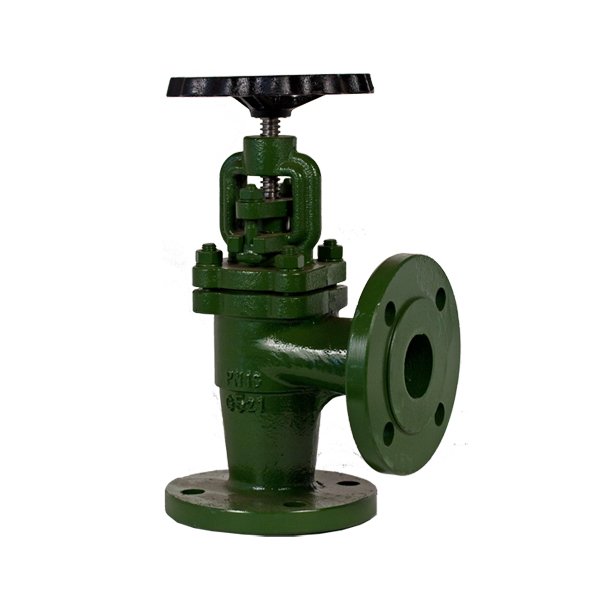

The DIN PN16 Cast Iron Angle SDNR Valve is designed for reliable performance in industrial applications. Constructed with a Cast Iron body and Stainless Steel components, this valve ensures durability and corrosion resistance. The handwheel actuator allows for easy operation, while the Flanged Drilled connection provides secure installation. Meeting ISO5752 and DIN2501 standards, this valve guarantees safety and efficiency in fluid control systems.

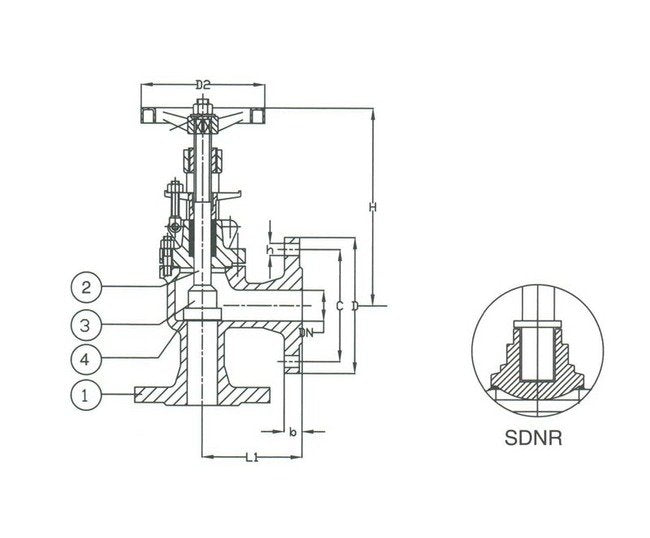

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
130 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
90 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
015
Specifications Stem Material
Stainless Steel
Specifications T
14 mm
Specifications Weight
3.9 kg
