DIN PN16 Cast Iron Angle Valve with Stainless Steel Components

DIN PN16 Cast Iron Angle Valve with Stainless Steel Components

SKU:VAL-801ddc

Durable PN 16 Cast Iron Angle Valve with Stainless Steel components for reliable hydraulic control.

Regular price $149.99
Regular price Sale price $149.99
Sale

Initiate Order

DIN PN16 Cast Iron Angle Valve with Stainless Steel Components

DIN PN16 Cast Iron Angle Valve with Stainless Steel Components

$149.99

Quantity: 1

Claim Your Seller Account

DIN PN16 Cast Iron Angle Valve with Stainless Steel Components

DIN PN16 Cast Iron Angle Valve with Stainless Steel Components

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The PN 16 Cast Iron Angle Regular Valve features a durable Cast Iron body with Stainless Steel Stem, Disc, and Seat, ensuring reliable performance and longevity. Designed to meet ISO5752 Series 8 standards, this valve is equipped with DIN2501-PN16 flanges for easy installation. With a compact design and Handwheel actuators, it provides precise control over hydraulic flow. Ideal for industrial applications requiring a robust valve solution.

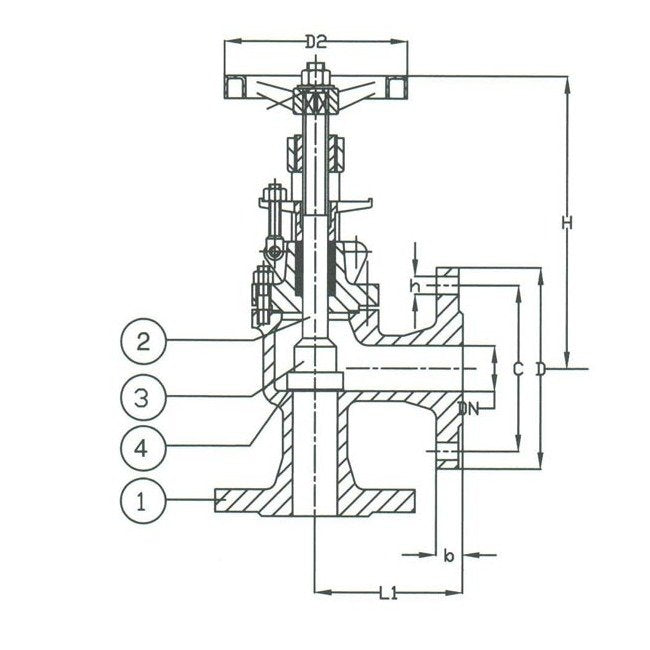

Product Specifications

Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
65 mm
Specifications Connection
Flanged Drilled
Specifications D
95 mm
Specifications D2
100 mm
Specifications Disc Material
Stainless Steel
Specifications H
130 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
90 mm
Specifications Number Of Holes
4
Specifications Seat Material
Stainless Steel
Specifications Size
015
Specifications Stem Material
Stainless Steel
Specifications T
14 mm
Specifications Weight
3.9 kg
