DIN PN16 Cast Iron Lift Check Angle Valve
DIN PN16 Cast Iron Lift Check Angle Valve
SKU:VAL-6a34a7
Reliable DIN PN16 Cast Iron Valve for hydraulic systems
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
DIN PN16 Cast Iron Lift Check Angle Valve
$299.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Iron Lift Check Angle Valve
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Cast Iron Lift Check Angle Valve features a robust Cast Iron body with Stainless Steel disc and seat for durability. Compliant with DIN standards, this valve ensures reliable performance in hydraulic systems, with Handwheel actuators for easy operation.

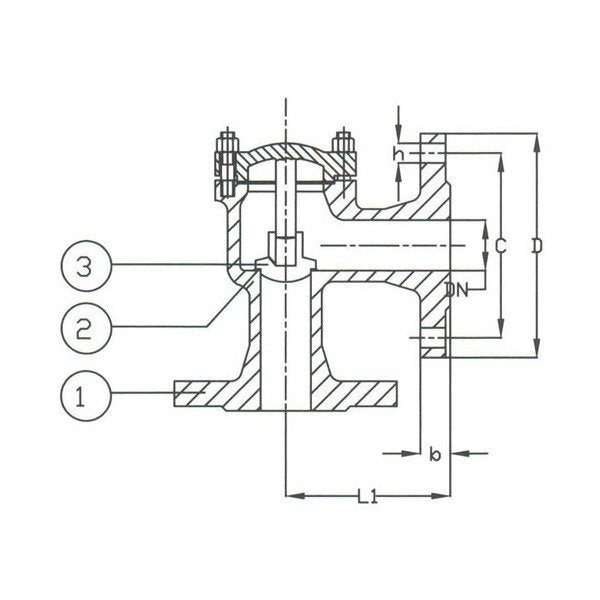

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
18 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755862 | 755892
Specifications L1
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications T
20 in
Specifications Weight
20.0 kg
