DIN PN16 Cast Iron Lift Check Globe Valve

Name: DIN PN16 Cast Iron Lift Check Globe Valve
Brand: World Wide Metric, Inc.
SKU: VAL-d7f1f1
Price: 149.99 USD
Availability: OutOfStock

SKU:VAL-d7f1f1

Enhance fluid control with the durable DIN PN16 Cast Iron Valve. Complies with DIN standards.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

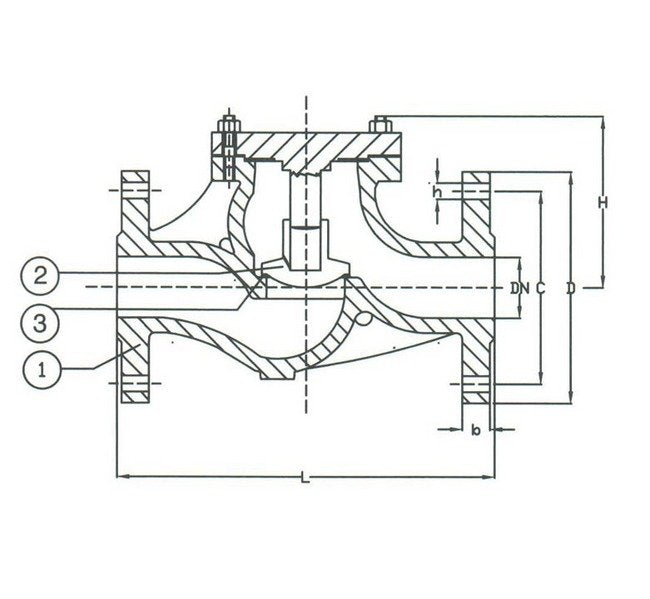

The DIN PN16 Cast Iron Lift Check Globe Valve is designed for reliable fluid control in industrial applications. Constructed with a cast iron body and stainless steel disc and seat, this valve ensures durability and corrosion resistance. It complies with DIN standards, featuring precise face to face and center to center dimensions as per DIN 3202-F1 and F8 respectively. With a flanged connection according to DIN2501-PN16, this valve offers easy installation and secure sealing for optimal performance.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Cast Iron

Specifications C

65 mm

Specifications Connection

Flanged Drilled

Specifications D

95 mm

Specifications Disc Material

Stainless Steel

Specifications H

75 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications Impaissa Code

753601 | 755841 | 755871

Specifications L

130 mm

Specifications Number Of Holes

Specifications Seat Material

Stainless Steel

Specifications Size

015

Specifications Stem Material

Stainless Steel

Specifications T

14 in

Specifications Weight

2.2 kg
