DIN PN16 Cast Iron Lift Check Valve
DIN PN16 Cast Iron Lift Check Valve
SKU:VAL-5490c7
Durable DIN PN16 Cast Iron Lift Check Valve for reliable fluid control in industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DIN PN16 Cast Iron Lift Check Valve
$189.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Iron Lift Check Valve
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

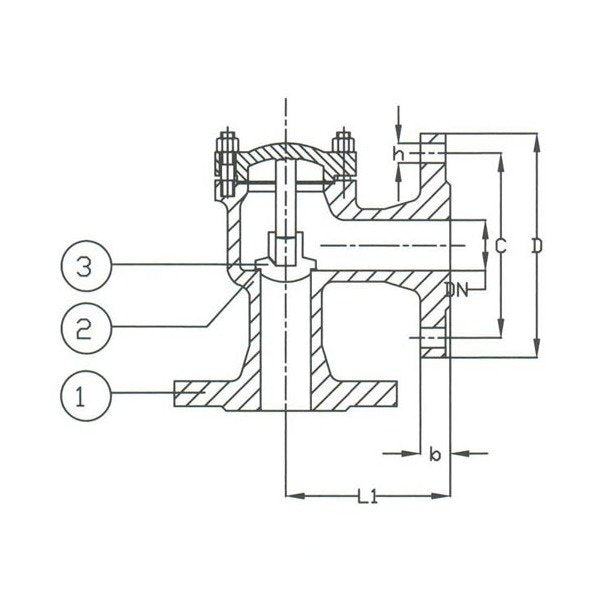

The DIN PN16 Cast Iron Lift Check Angle Pattern Valve is constructed with a Cast Iron body, Stainless Steel disc, and seat, ensuring durability and reliability in fluid control systems. Compliant with DIN standards, this valve features precise Face to Face and Face to Center dimensions, along with Flanges meeting DIN2501-PN16 requirements. The valve's Stainless Steel components and Handwheel Actuator further enhance its longevity and ease of operation, making it ideal for industrial applications where performance and longevity are paramount.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
180 mm
Specifications Connection
Flanged Drilled
Specifications D
220 mm
Specifications Disc Material
Stainless Steel
Specifications H
18 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755863 | 755893
Specifications L1
175 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
100
Specifications Stem Material
Stainless Steel
Specifications T
20 in
Specifications Weight
31.0 kg
