DIN PN16 Cast Iron Lift Check Valve
DIN PN16 Cast Iron Lift Check Valve
SKU:VAL-0b59c7
Durable DIN PN16 Cast Iron Valve for precise flow control in industrial settings.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
DIN PN16 Cast Iron Lift Check Valve
$289.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Iron Lift Check Valve
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

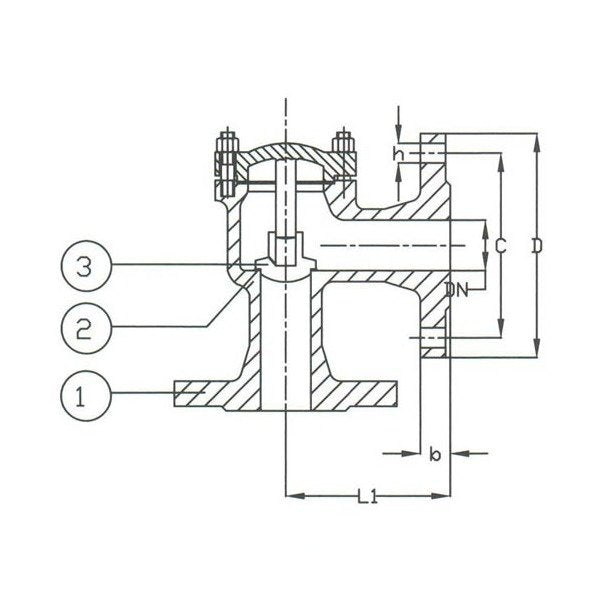

The DIN PN16 Cast Iron Lift Check Valve is designed for reliable flow control in industrial applications. Constructed with a Cast Iron body, Stainless Steel disc, and seat, this valve ensures durability and performance. Compliant with DIN standards for face to face and flange dimensions, it offers precision engineering for seamless integration. The Handwheel actuator allows for manual operation, while the Stainless Steel components provide corrosion resistance for long-term use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Iron
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications Disc Material
Stainless Steel
Specifications H
18 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
755864 | 755894
Specifications L1
200 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications T
22 in
Specifications Weight
48.0 kg
