DIN PN16 Cast Iron Swing Check Valve - 065 Size
DIN PN16 Cast Iron Swing Check Valve - 065 Size
SKU:VAL-4bd12d
Durable DIN PN16 Cast Iron Swing Check Valve for reliable performance in industrial settings.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
DIN PN16 Cast Iron Swing Check Valve - 065 Size
$189.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Iron Swing Check Valve - 065 Size
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

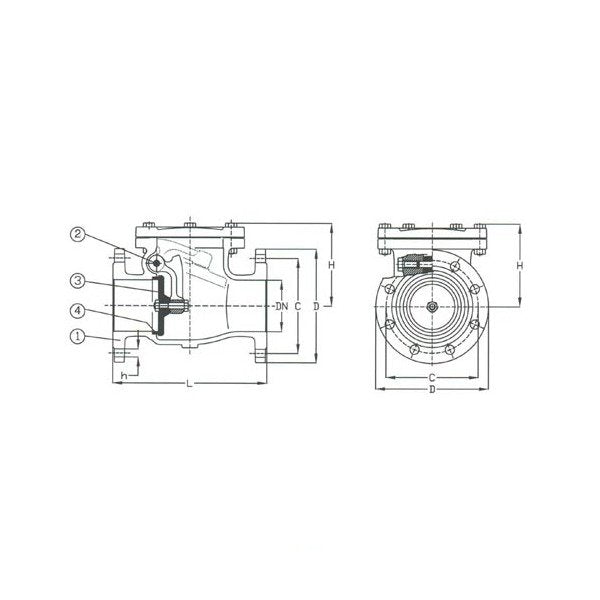

The DIN PN16 Cast Iron Swing Check Valve is expertly crafted with a Cast Iron body, Bronze seat and disc, and Brass stem to ensure durability and efficient performance. Designed to meet DIN standards, this valve offers reliable hydraulic inspection and features a gravity actuator for seamless operation. With Flanged Drilled connections and precise dimensions according to DIN specifications, this valve is ideal for industrial applications requiring sturdy construction and optimal functionality.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Cast Iron
Specifications C
145 mm
Specifications Connection
Flanged Drilled
Specifications D
185 mm
Specifications Disc Material
Bronze
Specifications H
130 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753573 | 755903 | 755913
Specifications L
240 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
065
Specifications Stem Material
Brass
Specifications T
18 in
Specifications Weight
29.00 kg
