DIN PN16 Cast Iron Swing Check Valve - 300mm
DIN PN16 Cast Iron Swing Check Valve - 300mm
SKU:VAL-75fd4f
High-performance DIN PN16 Cast Iron Swing Check Valve for industrial fluid control needs.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
DIN PN16 Cast Iron Swing Check Valve - 300mm
$599.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Iron Swing Check Valve - 300mm
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Cast Iron Swing Check Valve is engineered with a cast iron body, bronze seat, and disc, ensuring durability and reliable performance for industrial applications. Compliant with DIN standards, this valve features a gravity actuator, flanged connection, and meets hydraulic inspection requirements. With a robust construction and precise design, this valve guarantees efficient fluid control and longevity.

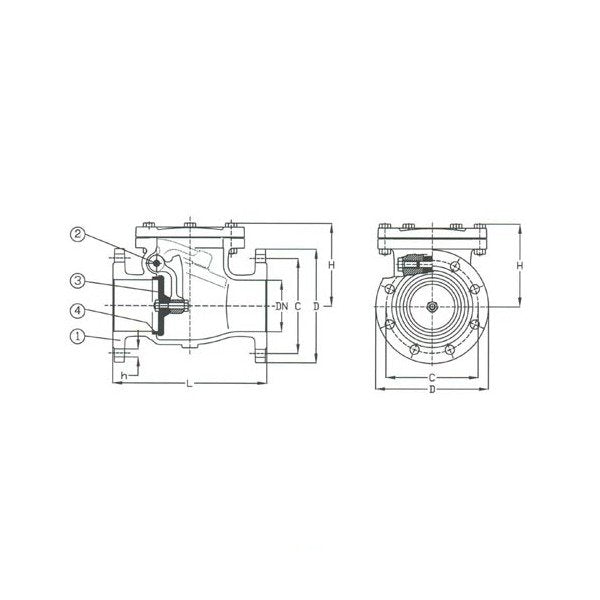

Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Cast Iron
Specifications C
410 mm
Specifications Connection
Flanged Drilled
Specifications D
460 mm
Specifications Disc Material
Bronze
Specifications H
330 mm
Specifications Hydraulic Inspection Body
24
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753580 | 755910 | 755920
Specifications L
700 mm
Specifications Number Of Holes
12
Specifications Seat Material
Bronze
Specifications Size
300
Specifications Stem Material
Brass
Specifications T
28 in
Specifications Weight
307 kg
