DIN PN16 Cast Steel Angle SDNR Valve - 080 Size
DIN PN16 Cast Steel Angle SDNR Valve - 080 Size
SKU:VAL-e3f3b7
Reliable DIN PN16 Cast Steel Angle Valve for durable hydraulic performance. Brass seat, stainless steel disc. Easy to install and operate.
Regular price
$239.99
Regular price
Sale price
$239.99
Unit price
per
Initiate Order
DIN PN16 Cast Steel Angle SDNR Valve - 080 Size
$239.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Steel Angle SDNR Valve - 080 Size
$239.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

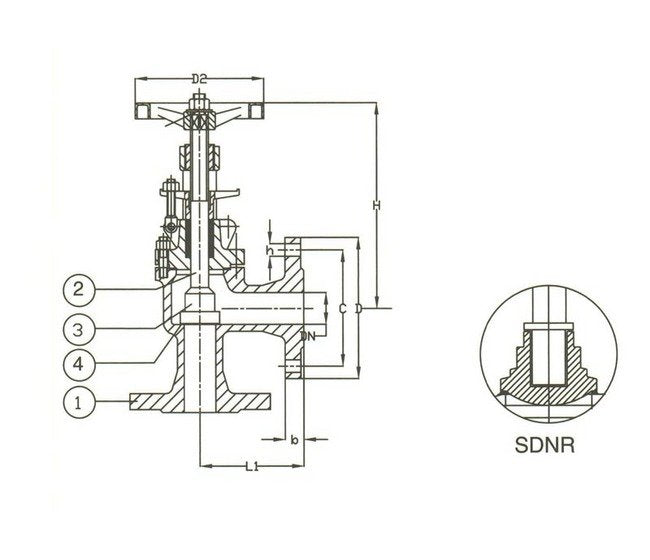

The DIN PN16 Cast Steel Angle SDNR Valve features a robust GSC-25N2 cast steel body, brass stem and seat (DIN 17672), and stainless steel disc. Designed to meet ISO5752 Series 8 standards, with flanges according to DIN2501-PN16, this valve ensures reliable performance in hydraulic systems. The handwheel actuator and flanged connections offer ease of operation and installation, making it ideal for industrial applications requiring durability and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
160 mm
Specifications Connection
Flanged Drilled
Specifications D
200 mm
Specifications D2
200 mm
Specifications Disc Material
Stainless Steel
Specifications H
280 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L1
155 mm
Specifications Number Of Holes
8
Specifications Seat Material
Brass
Specifications Size
080
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
23.0 kg
