DIN PN16 Cast Steel Angle Valve
DIN PN16 Cast Steel Angle Valve
SKU:VAL-b42f45
Durable DIN PN16 Cast Steel Angle Valve with stainless steel components. Ideal for industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
DIN PN16 Cast Steel Angle Valve
$499.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Steel Angle Valve
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN PN16 Cast Steel Angle Valve is a high-quality valve designed for industrial applications. Constructed with durable materials such as Cast Steel body, Stainless Steel seat, disc, and stem, this valve ensures reliable performance and longevity. With specifications meeting hydraulic inspection standards, including Size 125, Hydraulic Inspection - Body 25, and Hydraulic Inspection - Seat 16, this valve is a dependable choice for fluid control. The valve's Flanges adhering to DIN2501-PN16 standards ensure secure connections, while the Handwheel Actuator allows for manual operation. Ideal for institutional and government procurement needs.

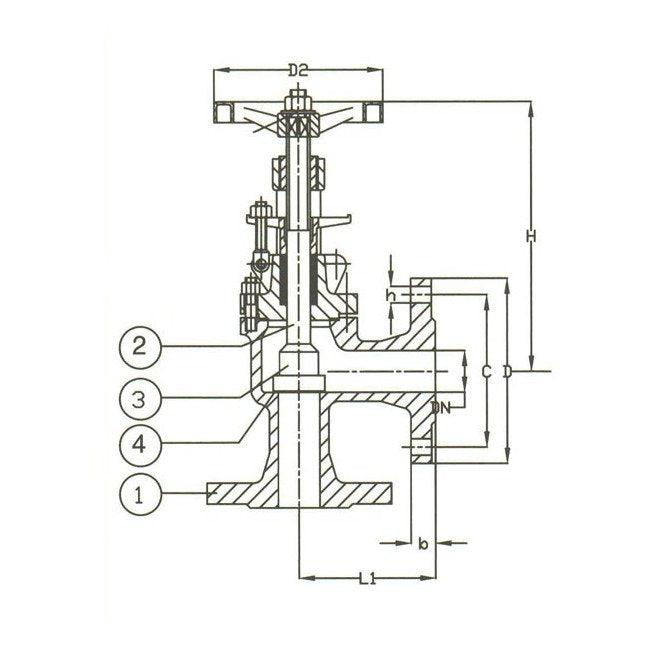

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Cast Steel
Specifications C
210 mm
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
225 mm
Specifications Disc Material
Stainless Steel
Specifications H
355 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications Impaissa Code
753475 | 755318
Specifications L1
200 mm
Specifications Number Of Holes
8
Specifications Seat Material
Stainless Steel
Specifications Size
125
Specifications Stem Material
Stainless Steel
Specifications T
22 mm
Specifications Weight
46 kg
