DIN PN16 Cast Steel Globe Valve with Spring-loaded Disc

Name: DIN PN16 Cast Steel Globe Valve with Spring-loaded Disc
Brand: World Wide Metric, Inc.
SKU: VAL-9ec92c
Price: 599.99 USD
Availability: OutOfStock

SKU:VAL-9ec92c

Reliable DIN PN16 Cast Steel Globe Valve for precise fluid control.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The DIN PN16 Cast Steel Globe Valve with Spring-loaded Disc is a durable and reliable solution for fluid control applications. Constructed with a cast steel body and stainless steel components, including the disc and stem, this valve ensures long-lasting performance under high-pressure conditions. The valve features flanges according to DIN2501-PN16 standards, providing secure connections and easy installation. With a size of 300 and hydraulic inspections compliant with industry standards, this valve is ideal for both consumer and institutional use.

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Cast Steel

Specifications Connection

Flanged Drilled

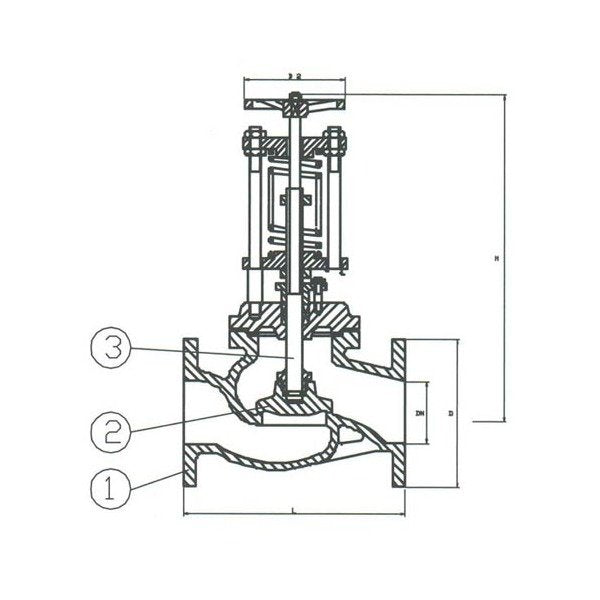

Specifications D

460 mm

Specifications D2

395 mm

Specifications Disc Material

Stainless Steel

Specifications H

1240 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

850 mm

Specifications Seat Material

Brass

Specifications Size

300

Specifications Stem Material

Brass

Specifications Weight

360 kg

DIN PN16 Cast Steel Globe Valve with Spring-loaded Disc
