DIN PN16 Cast Steel Spring Loaded Globe Valve
DIN PN16 Cast Steel Spring Loaded Globe Valve
SKU:VAL-117d35
Reliable DIN PN16 Cast Steel Globe Valve for industrial applications. Durable materials, precise control, and compliant with DIN standards.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
DIN PN16 Cast Steel Spring Loaded Globe Valve
$349.99
Quantity: 1
Claim Your Seller Account
DIN PN16 Cast Steel Spring Loaded Globe Valve
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

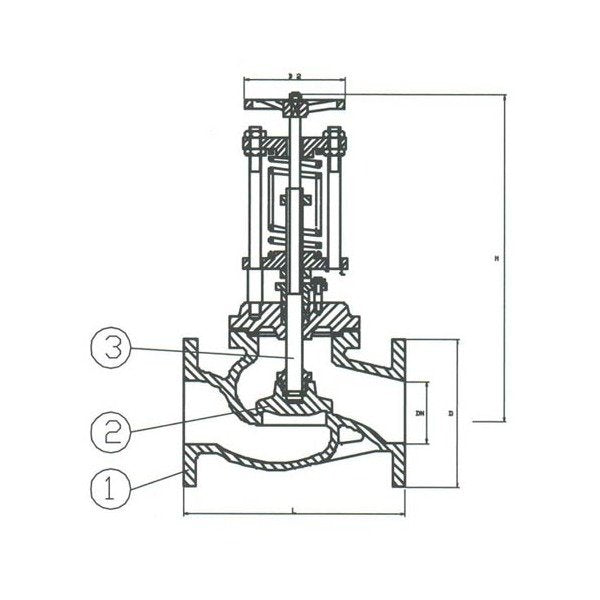

The DIN PN16 Cast Steel Spring Loaded Globe Valve is designed for high-performance applications, featuring a cast steel body, stainless steel disc, and stem for durability and reliability. With flanges according to DIN2501-PN16 standards, this valve ensures secure connections. The spring actuator provides precise control, making it ideal for critical operations in industrial settings. Tested for hydraulic inspection, this valve meets stringent quality standards, offering superior performance and longevity.
Product Specifications
Specifications Actuators
Spring
Specifications Body Material
Cast Steel
Specifications Connection
Flanged Drilled
Specifications D
250 mm
Specifications D2
160 mm
Specifications Disc Material
Stainless Steel
Specifications H
585 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
400 mm
Specifications Seat Material
Brass
Specifications Size
125
Specifications Stem Material
Brass
Specifications Weight
56 kg
